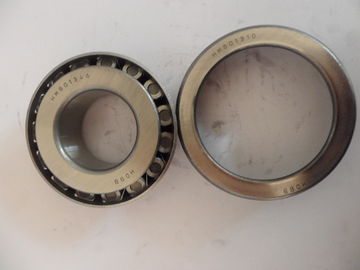

33114 70X120X37mm Brass Cage Taper Roller Bearing With Taper Bore Size 70mm
Place of Origin: | Japan |
---|---|
Brand Name: | NSK |
Certification: | ISO9001:2008 |
Model Number: | 33114 |
Minimum Order Quantity: | 1pc |
Price: | USD 0.1-1000/pc |
Packaging Details: | Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton |
Payment Terms: | TT, Western Union, MoneyGram, |
Supply Ability: | 10000pcs/month |
Type: | Taper Roller Bearing | Bore Size: | 70mm |
---|---|---|---|
Precision Rating: | P0 P6 P5 P4 P2 | Vibration: | Z1V1 Z2V2 Z3V3 Z4V4 |
High Light: | small tapered roller bearings,tapered roller thrust bearing |
Taper Roller Bearing Single Row 33114, 70mm Bore
Tapered roller bearings
Taper Roller Bearing adopts CAD design and adopts advanced processing equipment and manufacturing processes including intermediate frequency hot forging and expansion forging, numerical control multi-knife, and profiling turning, heat treatment for protection atmosphere, numerical control grinding, and automatic grinding processing line production; the detection means are complete. Dynamic and non-destructive testing of the product's shape profile, roundness, roughness, vibration, noise, cracks, life, etc., and the effective operation of the TS16949:2002 and ISO9001:2000 quality systems ensure that the entire process quality is controlled.
Package: Usually made by plastic tube+anti-rust paper+box+carton
Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union
Delivery Time: 3-25 days, according to the order quantity
Main purpose
Taper Roller Bearing are widely used in automobiles, construction machinery, machine tools and general machinery industries, the company adhering to the "customer focus as the focus" to "pay attention to the process, strive for excellence" method, "to meet customers, mutual benefit and win-win" as the goal, established a perfect Quality Management System and Resource Management System (ERP).
Description
|
All types tapered roller bearings
|
Structure
|
Tapered roller bearings
|
Brand name
|
As the customer's requirement
|
Quality standard
|
ISO9001:2008
|
Services
|
OEM Based on your Aboriginal
|
Delivery time
|
5-20 days
|
Bearing package
|
Box ,carton ,pallet
|
Payment term
|
L/C ,T/T
|
Species
|
All models
|
Material
|
Chromium steel (main), carbon steel, stainless steel, ceramic
|
30000 series
|
30202,30203,30205,30206,30207,30302,30303,30305,30308,30352 ect
|
31000 series
|
31305,31306,31307,31308,31310,31311,31312,31313,31314,31319 ect
|
32000 series
|
32204,32204,32206,32209,32210,32303,32304,32305,32306,32334 ect
|
33000 Series
|
33205,33206,33207,33209,33210,33217,33108,33109,33110,33118 ect
|
Products Show:
Specification:
Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||
d | D | T | B | C | R min |
r min |
C | C0 | kg | |
33109 | 45 | 80 | 26 | 26 | 20.50 | 1.50 | 1.50 | 84.00 | 115.00 | 0.538 |
33110 | 50 | 85 | 26 | 26 | 20.00 | 1.50 | 1.50 | 86.00 | 122.00 | 0.642 |
33111 | 55 | 95 | 30 | 30 | 23.00 | 1.50 | 1.50 | 113.00 | 163.00 | 0.894 |
33112 | 60 | 100 | 30 | 30 | 23.00 | 1.50 | 1.50 | 117.10 | 173.20 | 0.895 |
33113 | 65 | 110 | 34 | 34 | 26.50 | 1.50 | 1.50 | 152.00 | 223.00 | 1.330 |
33114 | 70 | 120 | 37 | 37 | 29.00 | 2.00 | 1.50 | 176.00 | 260.00 | 1.710 |
33115 | 75 | 125 | 37 | 37 | 29.00 | 2.00 | 1.50 | 176.10 | 279.60 | 1.780 |
33116 | 80 | 130 | 37 | 37 | 29.00 | 2.00 | 1.50 | 294.00 | 191.00 | 1.930 |
33117 | 85 | 140 | 41 | 41 | 32.00 | 2.50 | 2.00 | 221.00 | 350.00 | 2.380 |
33118 | 90 | 150 | 45 | 45 | 35.00 | 2.50 | 2.00 | 252.10 | 414.70 | 3.132 |
Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||
d | D | T | B | C | R min |
r min |
C | C0 | kg | |
33012 | 60 | 95 | 27 | 27 | 21.00 | 1.50 | 1.50 | 93.50 | 145.00 | 0.684 |
33013 | 65 | 100 | 27 | 27 | 21.00 | 1.50 | 1.50 | 98.10 | 157.70 | 0.740 |
33014 | 70 | 110 | 31 | 31 | 25.50 | 1.50 | 1.50 | 136.00 | 223.00 | 1.080 |
33015 | 75 | 115 | 31 | 31 | 25.50 | 1.50 | 1.50 | 139.00 | 232.00 | 1.120 |
33017 | 85 | 130 | 36 | 36 | 29.50 | 1.50 | 1.50 | 180.40 | 305.50 | 1.700 |
33018 | 90 | 140 | 39 | 39 | 32.50 | 2.00 | 1.50 | 215.00 | 360.00 | 2.180 |
33019 | 95 | 145 | 39 | 39 | 32.50 | 2.00 | 1.50 | 219.00 | 375.00 | 2.270 |
33020 | 100 | 150 | 39 | 59 | 32.50 | 2.00 | 1.50 | 224.00 | 390.00 | 2.370 |
33021 | 105 | 160 | 43 | 43 | 34.00 | 2.50 | 2.00 | 267.00 | 461.00 | 3.080 |
33022 | 110 | 170 | 47 | 47 | 37.00 | 2.50 | 2.00 | 287.00 | 502.00 | 3.810 |
Bearing No. | Dimensions (mm) | Load Rating (KN) | Mass | |||||||
d | D | T | B | C | R min |
r min |
C | C0 | kg | |
32004 | 20 | 42 | 15 | 15 | 12.0 | 1.0 | 1.0 | 25.1 | 28.2 | 0.095 |
32005 | 25 | 47 | 15 | 15 | 11.5 | 0.6 | 0.6 | 28.0 | 34.1 | 0.111 |
32006 | 30 | 55 | 17 | 17 | 13.0 | 1.0 | 1.5 | 40.0 | 45.0 | 0.175 |
32007 | 35 | 62 | 18 | 18 | 14.0 | 1.0 | 1.0 | 43.2 | 59.2 | 0.224 |
32008 | 40 | 68 | 19 | 19 | 14.5 | 1.0 | 1.0 | 55.0 | 62.0 | 0.270 |
32009 | 45 | 75 | 20 | 20 | 15.5 | 1.0 | 1.0 | 65.0 | 76.0 | 0.340 |
32010 | 50 | 80 | 20 | 20 | 15.5 | 1.0 | 1.0 | 67.0 | 79.0 | 0.360 |
32011 | 55 | 90 | 23 | 23 | 17.5 | 1.5 | 1.5 | 80.2 | 117.2 | 0.551 |
32012 | 60 | 95 | 23 | 23 | 17.5 | 1.5 | 1.5 | 81.7 | 122.2 | 0.590 |
32013 | 65 | 100 | 23 | 23 | 17.5 | 1.5 | 1.5 | 82.8 | 127.3 | 0.630 |
32014 | 70 | 110 | 25 | 25 | 19.0 | 1.5 | 1.5 | 104.3 | 160.1 | 0.850 |
32015 | 75 | 115 | 25 | 25 | 19.0 | 1.5 | 1.5 | 103.1 | 160.2 | 0.875 |
32016 | 80 | 125 | 29 | 29 | 22.0 | 1.5 | 1.5 | 141.0 | 220.0 | 1.270 |
32017 | 85 | 130 | 29 | 29 | 22.0 | 1.5 | 1.5 | 139.8 | 220.3 | 1.320 |
32018 | 90 | 140 | 32 | 32 | 24.0 | 2.0 | 1.5 | 171.3 | 271.0 | 1.730 |
32019 | 95 | 145 | 32 | 32 | 24.0 | 2.0 | 1.5 | 166.0 | 202.0 | 1.880 |
32020 | 100 | 150 | 32 | 32 | 24.0 | 2.0 | 1.5 | 173.1 | 281.7 | 1.873 |
32021 | 105 | 160 | 35 | 35 | 26.0 | 2.5 | 2.0 | 205.4 | 335.8 | 2.400 |
32022 | 110 | 170 | 38 | 38 | 29.0 | 2.5 | 2.0 | 245.7 | 403.4 | 2.972 |
32024 | 120 | 180 | 38 | 38 | 29.0 | 2.5 | 2.0 | 242.1 | 404.4 | 3.180 |
32026 | 130 | 200 | 45 | 45 | 34.0 | 2.5 | 2.0 | 340.0 | 563.0 | 5.040 |
32028 | 140 | 210 | 45 | 45 | 34.0 | 2.5 | 2.0 | 346.0 | 585.0 | 5.280 |
Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||
d | D | T | B | C | R min |
r min |
C | C0 | kg | |
32204 | 20 | 47 | 19.25 | 18 | 15 | 1.00 | 1.00 | 30.30 | 34.70 | 0.157 |
32205 | 25 | 52 | 19.25 | 18 | 16 | 1.00 | 1.00 | 41.30 | 49.20 | 0.200 |
32206 | 30 | 62 | 21.25 | 20 | 17 | 1.00 | 1.00 | 52.00 | 64.00 | 0.288 |
32207 | 35 | 72 | 24.25 | 23 | 19 | 1.50 | 1.50 | 70.60 | 89.50 | 0.447 |
32208 | 40 | 80 | 24.75 | 23 | 19 | 1.50 | 1.50 | 77.90 | 97.20 | 0.531 |
32209 | 45 | 85 | 24.75 | 23 | 19 | 1.50 | 1.50 | 81.00 | 104.00 | 0.576 |
32210 | 50 | 90 | 24.75 | 23 | 19 | 1.50 | 1.50 | 83.00 | 108.00 | 0.627 |
32211 | 55 | 100 | 26.75 | 25 | 21 | 2.00 | 1.50 | 108.00 | 142.30 | 0.853 |
32212 | 60 | 110 | 29.75 | 28 | 24 | 2.00 | 1.50 | 132.80 | 179.60 | 1.168 |
32213 | 65 | 120 | 32.75 | 31 | 27 | 2.00 | 1.50 | 160.90 | 221.70 | 1.544 |
32214 | 70 | 125 | 33.25 | 31 | 27 | 2.00 | 1.50 | 168.50 | 237.10 | 1.643 |
32215 | 75 | 130 | 33.25 | 31 | 27 | 2.00 | 1.50 | 170.30 | 242.10 | 1.750 |
32216 | 80 | 140 | 35.25 | 33 | 28 | 2.50 | 2.00 | 198.10 | 279.00 | 2.132 |
32217 | 85 | 150 | 38.50 | 36 | 30 | 2.50 | 2.00 | 226.70 | 324.00 | 2.680 |
32218 | 90 | 160 | 42.50 | 40 | 34 | 2.50 | 2.00 | 269.80 | 395.50 | 3.470 |
32219 | 95 | 170 | 45.50 | 43 | 37 | 3.00 | 2.50 | 302.50 | 448.40 | 4.240 |
32220 | 100 | 180 | 49.00 | 46 | 39 | 3.00 | 2.50 | 341.00 | 512.00 | 5.100 |
32221 | 105 | 190 | 53.00 | 50 | 43 | 3.00 | 2.50 | 380.00 | 540.00 | 6.250 |
32222 | 110 | 200 | 56.00 | 53 | 46 | 3.00 | 2.50 | 431.70 | 666.30 | 7.446 |
Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||
d | D | T | B | C | R min |
r min |
C | C0 | kg | |
32303 | 17 | 47 | 20.25 | 19 | 16 | 1.00 | 1.00 | 35.30 | 36.30 | 0.173 |
32304 | 20 | 52 | 22.25 | 21 | 18 | 1.50 | 1.50 | 46.00 | 47.50 | 0.241 |
32305 | 25 | 62 | 25.25 | 24 | 20 | 1.50 | 1.50 | 61.60 | 68.80 | 0.368 |
32306 | 30 | 72 | 28.75 | 27 | 23 | 1.50 | 1.50 | 81.60 | 96.40 | 0.563 |
32307 | 35 | 80 | 32.75 | 31 | 25 | 2.00 | 1.50 | 99.00 | 118.30 | 0.767 |
32308 | 40 | 90 | 35.25 | 33 | 27 | 2.00 | 1.50 | 115.70 | 147.80 | 1.049 |
32309 | 45 | 100 | 38.25 | 36 | 30 | 2.00 | 1.50 | 145.30 | 189.40 | 1.410 |
32310 | 50 | 110 | 42.25 | 40 | 33 | 2.50 | 2.00 | 177.50 | 236.10 | 1.936 |
32311 | 55 | 120 | 45.50 | 43 | 35 | 2.50 | 2.00 | 203.00 | 271.00 | 2.350 |
32312 | 60 | 130 | 48.50 | 46 | 37 | 3.00 | 2.50 | 226.70 | 303.00 | 2.900 |
32313 | 65 | 140 | 51.00 | 48 | 39 | 3.00 | 2.50 | 259.60 | 349.80 | 3.530 |
32314 | 70 | 150 | 54.00 | 51 | 42 | 3.00 | 2.50 | 298.90 | 408.50 | 4.350 |
32315 | 75 | 160 | 58.00 | 55 | 45 | 3.00 | 2.50 | 355.00 | 470.00 | 5.350 |
32316 | 80 | 170 | 61.50 | 58 | 48 | 3.00 | 2.50 | 378.00 | 497.00 | 6.320 |
32317 | 85 | 180 | 63.50 | 60 | 49 | 4.00 | 3.00 | 439.00 | 587.00 | 7.420 |
32318 | 90 | 190 | 67.50 | 64 | 53 | 4.00 | 3.00 | 461.00 | 614.00 | 8.610 |
32319 | 95 | 200 | 71.50 | 67 | 55 | 4.00 | 3.00 | 517.00 | 695.00 | 10.100 |
32320 | 100 | 215 | 77.50 | 73 | 60 | 4.00 | 3.00 | 491.00 | 637.00 | 12.200 |
Bearing No. | Dimensions (mm) | Load Rating (KN) | Mass | |||||||
d | D | T | B | C | R mIn |
r min |
C | C0 | kg | |
30202 | 15 | 35 | 11.75 | 11 | 10 | 0.6 | 0.6 | 15.0 | 14.3 | 0.053 |
30203 | 17 | 40 | 13.25 | 12 | 11 | 1.0 | 1.0 | 20.7 | 21.9 | 0.082 |
30204 | 20 | 47 | 15.25 | 14 | 12 | 1.0 | 1.0 | 28.2 | 30.6 | 0.128 |
30205 | 25 | 52 | 16.25 | 15 | 13 | 1.0 | 1.0 | 32.2 | 37.0 | 0.153 |
30206 | 30 | 62 | 17.25 | 16 | 14 | 1.0 | 1.0 | 43.3 | 50.5 | 0.231 |
30207 | 35 | 72 | 18.25 | 17 | 15 | 1.5 | 1.5 | 54.2 | 63.5 | 0.332 |
30208 | 40 | 80 | 19.75 | 18 | 16 | 1.5 | 1.5 | 63.0 | 74.0 | 0.417 |
30209 | 45 | 85 | 20.75 | 19 | 16 | 1.5 | 1.5 | 67.9 | 83.6 | 0.473 |
30210 | 50 | 90 | 21.75 | 20 | 17 | 1.5 | 1.5 | 73.3 | 92.1 | 0.529 |
30211 | 55 | 100 | 22.75 | 21 | 18 | 2.0 | 1.5 | 90.8 | 113.7 | 0.715 |
30212 | 60 | 110 | 23.75 | 22 | 19 | 2.0 | 1.5 | 103.3 | 130.0 | 0.905 |
30213 | 65 | 120 | 24.75 | 23 | 20 | 2.0 | 1.5 | 120.6 | 152.6 | 1.130 |
30214 | 70 | 125 | 26.25 | 24 | 21 | 2.0 | 1.5 | 132.0 | 173.0 | 1.238 |
30215 | 75 | 130 | 27.25 | 25 | 22 | 2.0 | 1.5 | 138.4 | 185.4 | 1.360 |
30216 | 80 | 140 | 28.25 | 26 | 22 | 2.5 | 2.0 | 160.4 | 212.8 | 1.680 |
30217 | 85 | 150 | 30.50 | 28 | 24 | 2.5 | 2.0 | 177.6 | 236.8 | 2.060 |
30218 | 90 | 160 | 32.50 | 30 | 26 | 2.5 | 2.0 | 200.1 | 269.6 | 2.560 |
30219 | 95 | 170 | 34.50 | 32 | 27 | 3.0 | 2.5 | 226.6 | 309.0 | 3.060 |
30220 | 100 | 180 | 37.00 | 34 | 29 | 3.0 | 2.5 | 253.9 | 350.3 | 3.740 |
30221 | 105 | 190 | 39.00 | 36 | 30 | 3.0 | 2.5 | 285.3 | 398.6 | 4.380 |
30222 | 110 | 200 | 41.00 | 38 | 32 | 3.0 | 2.5 | 314.9 | 443.6 | 5.233 |
Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||
d | D | T | B | C | Rmin | rmin | C | C0 | kg | |
30302 | 15 | 42 | 14.25 | 13 | 11 | 1.00 | 1.00 | 22.90 | 21.60 | 0.094 |
30303 | 17 | 47 | 15.25 | 14 | 12 | 1.00 | 1.00 | 28.30 | 27.30 | 0.129 |
30304 | 20 | 52 | 16.25 | 15 | 13 | 1.50 | 1.50 | 33.10 | 33.20 | 0.166 |
30305 | 25 | 62 | 18.25 | 17 | 15 | 1.50 | 1.50 | 46.90 | 48.10 | 0.266 |
30306 | 30 | 72 | 20.75 | 19 | 16 | 1.50 | 1.50 | 59.00 | 63.10 | 0.385 |
30307 | 35 | 80 | 22.75 | 21 | 18 | 2.00 | 1.50 | 75.30 | 82.60 | 0.515 |
30308 | 40 | 90 | 25.25 | 23 | 20 | 2.00 | 1.50 | 90.90 | 107.60 | 0.748 |
30309 | 45 | 100 | 27.25 | 25 | 22 | 2.00 | 1.50 | 108.90 | 129.80 | 0.987 |
30310 | 50 | 110 | 29.25 | 27 | 23 | 2.50 | 2.00 | 130.10 | 157.10 | 1.289 |
30311 | 55 | 120 | 31.50 | 29 | 25 | 2.50 | 2.00 | 153.30 | 187.60 | 1.635 |
30312 | 60 | 130 | 33.50 | 31 | 26 | 3.00 | 2.50 | 171.00 | 210.00 | 1.956 |
30313 | 65 | 140 | 36.00 | 33 | 28 | 3.00 | 2.50 | 195.90 | 241.70 | 2.440 |
30314 | 70 | 150 | 38.00 | 35 | 30 | 3.00 | 2.50 | 219.00 | 271.70 | 2.980 |
30315 | 75 | 160 | 40.00 | 37 | 31 | 3.00 | 2.50 | 252.80 | 318.80 | 3.586 |
30316 | 80 | 170 | 42.50 | 39 | 33 | 3.00 | 2.50 | 279.00 | 352.00 | 4.263 |
30317 | 85 | 180 | 44.50 | 41 | 34 | 4.00 | 3.00 | 304.90 | 388.20 | 4.960 |
30318 | 90 | 190 | 46.50 | 43 | 36 | 4.00 | 3.00 | 336.00 | 407.00 | 5.780 |
Bearing No. | Dimensions (mm) | Load Rating (KN) | Mass | |||||||
d | D | T | B | C | R min |
r min |
C | C0 | kg | |
31305 | 25 | 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 40.7 | 46.1 | 0.262 |
31306 | 30 | 72 | 20.75 | 19 | 14 | 1.5 | 1.5 | 52.0 | 60.0 | 0.389 |
31307 | 35 | 80 | 22.75 | 21 | 15 | 2.0 | 1.5 | 66.0 | 77.0 | 0.508 |
31308 | 40 | 90 | 25.25 | 23 | 17 | 2.0 | 1.5 | 81.0 | 96.0 | 0.722 |
31309 | 45 | 100 | 27.25 | 25 | 18 | 2.0 | 1.5 | 96.0 | 114.0 | 0.950 |
31310 | 50 | 110 | 29.25 | 27 | 19 | 2.5 | 2.0 | 108.0 | 128.0 | 1.230 |
31311 | 55 | 120 | 31.50 | 29 | 21 | 2.5 | 2.0 | 130.0 | 158.0 | 1.560 |
31312 | 60 | 130 | 33.50 | 31 | 22 | 3.0 | 2.5 | 145.4 | 176.8 | 1.920 |
31313 | 65 | 140 | 36.00 | 33 | 23 | 3.0 | 2.5 | 165.7 | 202.6 | 2.390 |
31314 | 70 | 150 | 38.00 | 35 | 25 | 3.0 | 2.5 | 186.9 | 231.0 | 2.870 |
31315 | 75 | 160 | 40.00 | 37 | 26 | 3.0 | 2.5 | 222.0 | 266.0 | 3.470 |
31316 | 80 | 180 | 42.50 | 39 | 27 | 3.0 | 2.5 | 236.0 | 282.0 | 4.120 |
31317 | 85 | 180 | 44.50 | 41 | 28 | 4.0 | 3.0 | 263.0 | 317.0 | 4.810 |
31318 | 90 | 190 | 46.50 | 43 | 30 | 4.0 | 3.0 | 282.0 | 336.0 | 5.600 |
