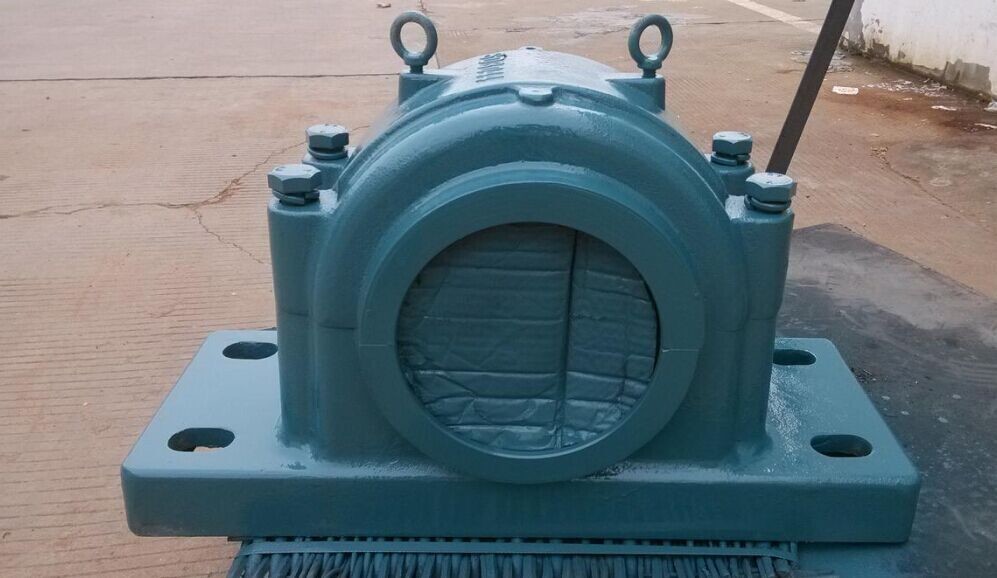

SNL507 Plummer Block Housing With Bearing Adapter Sleeve And Seal cast iron

Brand Name: SKF
Certification: ISO9001:2008
Model Number: SNL507
Minimum Order Quantity: 1set
Price: USD 1.00、pc
Packaging Details: Normal package
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Product Details
Type: Plummer Housing Material: Cast Iron
Vibration Level: V1, V2, V3, V4 Service: OEM & ODM Service
High Light:

plummer block bearing

,

sofn plummer block

Leave a Message
Product Description

High precision rolling bearing housing/plummer block SN507





Choice of seals
There is a choice of two standard seals for each housing and other special seals can be incorporated (fig). End covers are also available.



Reinforced base
The housing base is reinforced with ribs and extra material surrounding the four holes for the attachment bolts in order to improve seating on the base plate. The attachment bolts can be preloaded to give better location and cannot deform the housing base or housing bore (fig).



Good heat conduction
The reinforcement of the housing base means that there is a considerable area of contact between the base and base plate making for improved heat flow away from the bearing (fig).



Relubrication facility
The large SNL housings have three drilled and tapped holes that are plugged by metal screws. Two of the holes are in the housing cap (fig) and one is in the side face. Two grease nipples with covers as well as one adapter with G 1/8 and G 1/4 threads are supplied with each housing. Dimples cast into the cap mark the positions for grease nipples if it is required to relubricate the seals.



Space for sensor connections
Flat areas offer space to accommodate sensors for condition monitoring (fig). Housings with tapped holes can be supplied to order.



Caps and bases individually marked
The housing base and cap are matched during manufacture and are not interchangeable with those of other housings. To prevent mixing, the same consecutive number is marked on the cap and base of each individual housing (fig).



Easy mounting
Cap bolts are easy to unscrew. Notches to pry the cap from the base ease cap removal. The rectangular base and centring marks that are vertical to the housing bore axis simplify alignment (fig). Dimples mark the positions for dowels.



Mounting instructions are also supplied with each housing.




Split plummer block housings, SNL series for bearings on an adapter sleeve, with standard seals

  shaft Appropriate bearings Housings
    (basic designations) Boundary dimensions Mass Designations
    Aligning ball bearings Spherical roller bearings CARB           Housings only Housing complete with
  da Bearing Bearing Bearing A L H H1     Lip seals V-ring seals Lybyrinth seals Taconite
                          Seals

  mm - mm kg -

  88,9 1220 K 2220 K 22220 K 23220 K C 2220 K 160 380 218 112 17,6 SNL 520-617 - SNL 520 TA SNL 520 TSE -
  88,9 1320 K 2320 K 21320 K 22320 K C 2320 K 185 410 271 140 26,2 SNL 524-620 - SNL 620 TA SNL 620 TSE -
  88,9 1320 K 2320 K 21320 K 22320 K C 2320 K 185 410 271 140 26,2 FSNL 524-620 - FSNL 620 TA FSNL 620 TSE -
  90 1220 K 2220 K 22220 K 23220 K C 2220 K 160 380 218 112 17,6 SNL 520-617 SNL 520 TL SNL 520 TA SNL 520 TS SNL 520 TND
  90 1220 K 2220 K 22220 K 23220 K C 2220 K 160 380 218 112 17,6 FSNL 520-617 FSNL 520 TL FSNL 520 TA FSNL 520 TS FSNL 520 TND
  90 1320 K 2320 K 21320 K 22320 K C 2320 K 185 410 271 140 26,2 SNL 524-620 SNL 620 TL SNL 620 TA SNL 620 TS SNL 620 TND
  90 1320 K 2320 K 21320 K 22320 K C 2320 K 185 410 271 140 26,2 FSNL 524-620 FSNL 620 TL FSNL 620 TA FSNL 620 TS FSNL 620 TND
  100 1222 K 2222 K 22222 K 23222 K C 2222 K 175 410 242 125 22,0 SNL 522-619 SNL 522 TL SNL 522 TA SNL 522 TS SNL 522 TND
  100 1222 K 2222 K 22222 K 23222 K C 2222 K 175 410 242 125 22,0 FSNL 522-619 FSNL 522 TL FSNL 522 TA FSNL 522 TS FSNL 522 TND
  101,6 1222 K 2222 K 22222 K 23222 K C 2222 K 175 410 242 125 22,0 SNL 522-619 SNL 522 TL SNL 522 TA SNL 522 TSE -
  101,6 1222 K 2222 K 22222 K 23222 K C 2222 K 175 410 242 125 22,0 FSNL 522-619 FSNL 522 TL FSNL 522 TA FSNL 522 TSE -
  106,362 1224 K - 22224 K 23224 K C 3224 K 185 410 271 140 26,2 SNL 524-620 - SNL 524 TA SNL 524 TSA -
  106,362 1224 K - 22224 K 23224 K C 3224 K 185 410 271 140 26,2 FSNL 524-620 - FSNL 524 TA FSNL 524 TSA -
  107,95 1224 K - 22224 K 23224 K C 3224 K 185 410 271 140 26,2 SNL 524-620 - SNL 524 TA SNL 524 TSE -
  107,95 1224 K - 22224 K 23224 K C 3224 K 185 410 271 140 26,2 FSNL 524-620 - FSNL 524 TA FSNL 524 TSE -
  110 1224 K - 22224 K 23224 K C 3224 K 185 410 271 140 26,2 FSNL 524-620 FSNL 524 TL FSNL 524 TA FSNL 524 TS FSNL 524 TND
  110 1224 K - 22224 K 23224 K C 3224 K 185 410 271 140 26,2 SNL 524-620 SNL 524 TL SNL 524 TA SNL 524 TS SNL 524 TND
  112,713 - - 22226 K 23226 K C 2226 K 190 445 290 150 33,0 SNL 526 - SNL 526 TA SNL 526 TSA -
  112,713 - - 22226 K 23226 K C 2226 K 190 445 290 150 33,0 FSNL 526 - FSNL 526 TA FSNL 526 TSA -
  114,3 - - 22226 K 23226 K C 2226 K 190 445 290 150 33,0 FSNL 526 FSNL 526 TL FSNL 526 TA FSNL 526 TSE -
  114,3 - - 22226 K 23226 K C 2226 K 190 445 290 150 33,0 SNL 526 SNL 526 TL SNL 526 TA SNL 526 TSE -
  115 - - 22226 K 23226 K C 2226 K 190 445 290 150 33,0 SNL 526 SNL 526 TL SNL 526 TA SNL 526 TS SNL 526 TND
  115 - - 22226 K 23226 K C 2226 K 190 445 290 150 33,0 FSNL 526 FSNL 526 TL FSNL 526 TA FSNL 526 TS FSNL 526 TND
  125 - - 22228 K 23228 K C 2228 K 205 500 302 150 40,0 FSNL 528 FSNL 528 TL FSNL 528 TA FSNL 528 TS FSNL 528 TND
  125 - - 22228 K 23228 K C 2228 K 205 500 302 150 40,0 SNL 528 SNL 528 TL SNL 528 TA SNL 528 TS SNL 528 TND


SNL507 Plummer Block Housing With Bearing Adapter Sleeve And Seal cast iron 0

Housing d1 Dimensions(mm) Weightt Seals Bearing Adapter Bearing Adapter
NO. (mm) A H L (kg)   NO. Sleeve NO. Sleeve
SNL505 20 67 74 165 1.9 TSNG505 1205K H205 2205K H305
TSNS505 22205K
SNL506-605 25 77 89 185 2.2 TSNG506 1206K H206 2206K H306
TSNS506 22206K
SNL507-606 30 82 93 185 2.4 TSNG507 1207K H207 2207K H307
TSNS507 22207K
SNL508-607 35 85 108 205 3.2 TSNG508 1208K H208 2208K H308
TSNS508 22208K
SNL509 40 85 109 205 3.5 TSNG509 1209K H209 2209K H309
TSNS509 22209K
SNL510-608 45 90 113 205 3.85 TSNG510 1210K H210 2210K H310
TSNS510 22210K
SNL511-609 50 95 128 255 5.4 TSNG511 1211K H211 2211K H311
TSNS511 22211K
SNL512-610 55 105 134 255 6.7 TSNG512 1212K H212 2212K H312
TSNS512 22212K
SNL513-611 60 110 149 275 7.9 TSNG513 1213K H213 2213K H313
TSNS513 22213K
SNL515-612 65 115 155 280 9.7 TSNG515 1215K H215 2215K H315
TSNS515 22215K
SNL516-613 70 120 177 315 11.5 TSNG516 1216K H216 2216K H316
TSNS516 22216K
SNL517 75 125 183 320 12.8 TSNG517 1217K H217 2217K H317
TSNS517 22217K
SNL518-615 80 140 194 345 15.4 TSNG518 1218K H218 2218K H318
TSNS518 22218K H318 22218K H2318
SNL519-616 85 145 212 345 16.4 TSNG519 1219K H219 2219K H319
TSNS519 22219K
SNL520-617 90 160 218 380 20.4 TSNG520 1220K H220 2220K H320
TSNS520 22220K H320 23220K H2320
SNL522-619 100 175 242 410 26.5 TSNG522 1222K H222 2222K H322
TSNS522 22222K H322 23222K H2322
SNL524-620 110 185 271 410 32.2 TSNG524 1224K H3024 23224K H2324
TSNS524 22224K H3124
SNL526 115 190 290 445 39.8 TSNG526 22226K H3126 23226K H2326
TSNS526
SNL528 125 205 302 500 48.8 TSNG528 22228K H3128 23228K H2328
TSNS528
SNL530 135 220 323 530 56.5 TSNG530 22230K H3130 23230K H2330
TSNS530
SNL532 140 235 344 550 63.5 TSNG532 22232K H3132 23232K H2332
TSNS532
