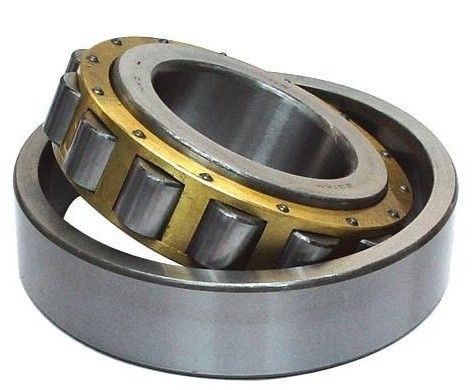

Rolling Mill Full Complement Cylindrical Roller Bearings NU 20/750 ECMA 750x1090x195mm

Rolling Mill Cylindrical Roller Bearing Stainless steel With Single Row

Detailed Product Description

Cylindrical roller bearing is a cylindrical roller and raceway for connecting angle bearings, bearing capacity is large, mainly bear radial load. The friction between the rolling body and the ring edge is small, which is suitable for high-speed rotation. If the rings are broken, they can be divided into single row bearings, NU, NJ, NUP, N, NF and NNU NN double row bearings. The bearing is a detachable structure in the inner ring and outer ring.

Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single and double row full complement bearings (without a cage) and split bearings complete the standard assortment provided here.

Model:NU 20/750 ECMA

Dimension:750x1090x195mm

Bore Size:750mm

Outside Diameter:1090mm

Width:195mm

Basic Dynamic Load Rating:7040kN

Basic Static Load Rating:14600kN

Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel

Cage Material: Brass,Steel,Nylon

Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity

Application: motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.

Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and NNF designs
