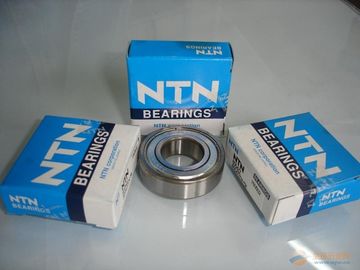

NTN 6004 20X42X12 Deep Groove Ball Bearing High Precision With Single / Double Row
Type: | Ball, Turning, | Structure: | Deep Groove |
---|---|---|---|
Number Of Row: | Single Row, Double Row | Application: | All Types Crane |
Lubrication: | Grease, Grease Or Oil, Dry, Oil | Package: | Original Package |
High Light: | v groove ball bearing,double row deep groove ball bearings |
Quick Details
Model: | 6004 ZZ C3 | Structure: | Deep Groove | Type: | ball bearing |
Inside Diameter: | 20 mm | Outside Diameter: | 42 mm | Thickness: | 12 mm |
Brand Name: | WQK & OEM | Bore Size: | 20 mm | Material: | GCr15 GCr15SiMn G20Gr2Ni4A |
Precision Rating: | P5 P6 P0 | Seals Type: | ZZZRS2RSRW2RWRZ2RZ |
Packaging & Delivery
Packaging Detail:plastic bag to color box to carton to pallet
Delivery Detail:3-15 days
Specifications
Specifications:
Samples are available
Ready goods in stock
High precision long life
Competitive price, best quality
1. Abstract:
Deep groove ball bearing is inseparable bearing; it can be subjected to radial load and some axial load. This kind of bearing has the characters of low friction, high limit speed, wide range of size and more structures, etc. It is one also the most common used bearings in mechanical industry
2. Features:
Deep groove ball bearings are simple and quite easy to use. It has the largest production volume. It is mainly used for a bear radial load, but also bear certain axial load.
3. Applications:
Generally it can be used in the installation, seal, with no special requirements of the parts. It also can be used in the cars' rear, transmission, electrical device and so on like such instrument, what's more for internal combustion engines and parts, construction machinery, railway vehicles, loading/unloading machinery, agricultural machinery, and other various industrial machinery.
New Items | Old Items | Size(d*D*B) | Mass |
6000-2Z | 80100 | 10x26x8 | 0.019 |
6001-2Z | 80101 | 12x28x8 | 0.021 |
6002-2Z | 80102 | 15x32x9 | 0.03 |
6003-2Z | 80103 | 17x35x10 | 0.036 |
6004-2Z | 80104 | 20x42x12 | 0.068 |
6005-2Z | 80105 | 25x47x12 | 0.078 |
6006-2Z | 80106 | 30x55x13 | 0.09 |
6007-2Z | 80107 | 35x62x14 | 0.16 |
6008-2Z | 80108 | 40x68x15 | 0.238 |
6009-2Z | 80109 | 45x75x16 | 0.24 |
6010-2Z | 80110 | 50x80x16 | 0.26 |
6011-2Z | 80111 | 55x90x18 | 0.362 |
6012-2Z | 80112 | 60x95x18 | 0.387 |
6013-2Z | 80113 | 65x100x18 | 0.43 |
6014-2Z | 80114 | 70x110x20 | 0.569 |
6015-2Z | 80115 | 75x115x20 | 0.63 |
6016-2Z | 80116 | 80x125x22 | 0.84 |
6017-Z | 60117 | 85x130x22 | 0.9 |
6017-2Z | 80117 | 85x130x22 | 0.9 |
6018-2Z | 80118 | 90x140x24 | 1.16 |
6019-2Z | 80119 | 95x145x24 | 1.18 |
6020-2Z | 80120 | 100x150x24 | 1.25 |
6021-2Z | 80121 | 100x160x26 | 1.62 |
6022-2Z | 80122 | 110x170x28 | 2.1 |
6024-2Z | 80124 | 120x180x28 | 2.4 |
6026-2Z | 80126 | 130x200x33 | 3.3 |
6028-2Z | 80128 | 140x210x33 | 3.9 |
6030-2Z | 80130 | 150x225x35 | 3.96 |
6032-2Z | 80132 | 160x240x38 | 5.1 |
