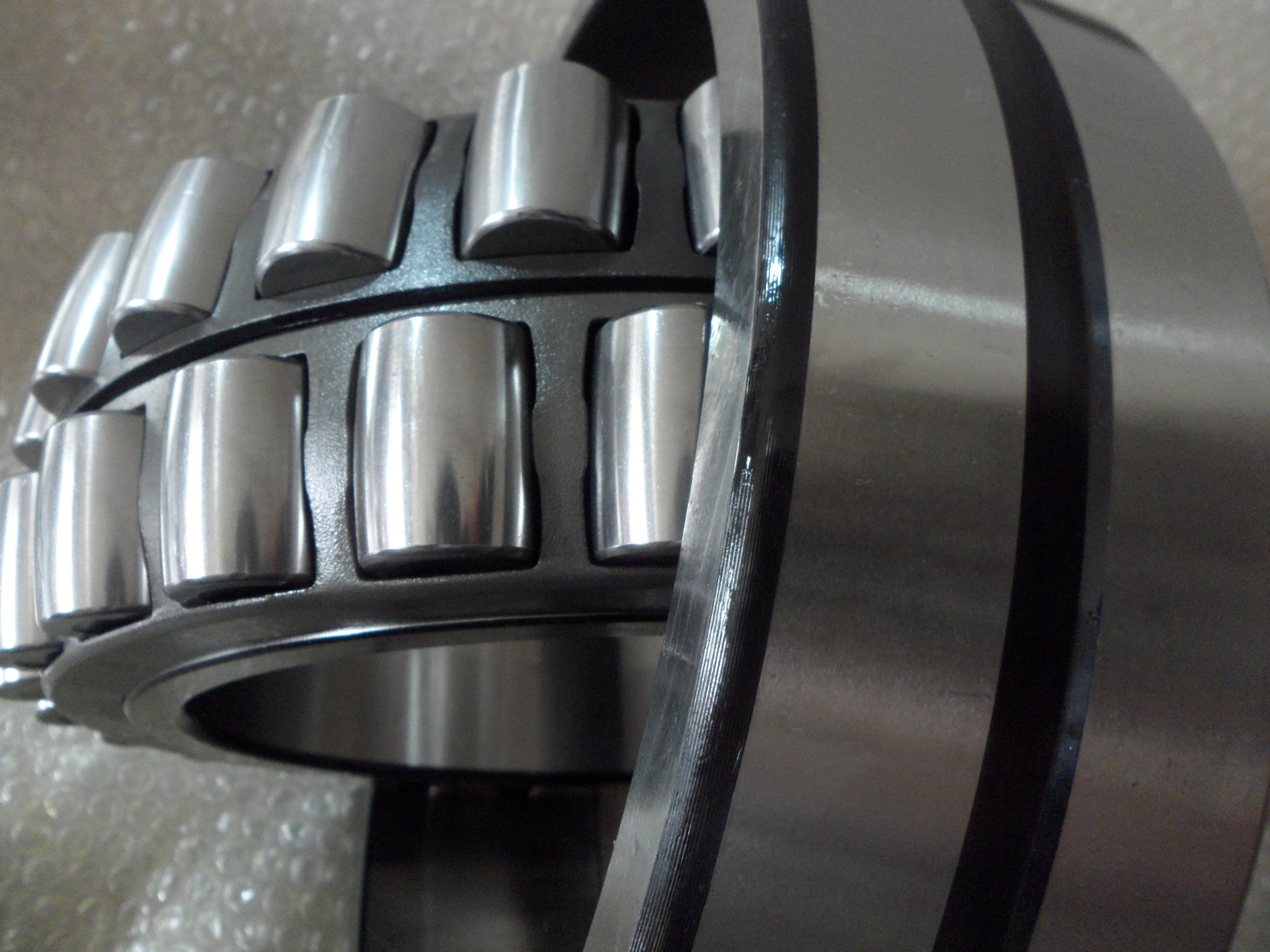

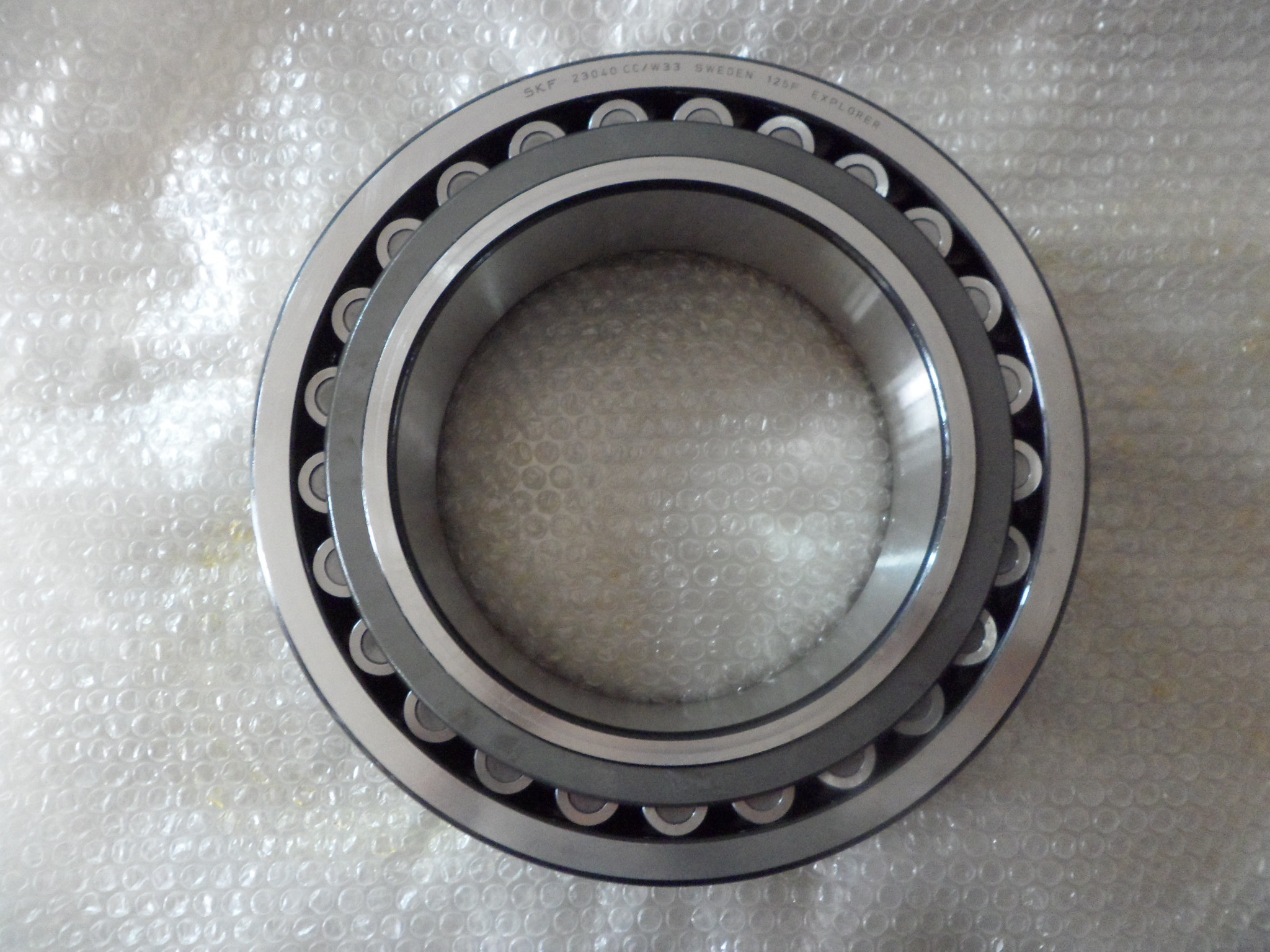

High Precision Spherical Roller Bearing With Two Structures High Tolerance

  • High Precision Spherical Roller Bearing With Two Structures High Tolerance
  • High Precision Spherical Roller Bearing With Two Structures High Tolerance
Place of Origin: JAPAN
Brand Name: NTN
Model Number: 22338
Minimum Order Quantity: 1PC
Price: USD 0.1/PC
Packaging Details: Vacuum bag, Box
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/MONTH
Product Details
Description: Spherical Roller Bearing Double Row 22338 Number Of Row: Double Row
Cage Material: Steel ,Copper Alloy Payment Term: T/T,L/C
High Light:

spherical roller thrust bearing

,

sealed spherical roller bearings
Leave a Message
Product Description

NTN Spherical Roller Bearing Double Row 22338 / 22338K With P5 / P6 Precision


Description:



Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for spherical roller bearings.

Shown in the figures, types EA, C, CD, CA, which are designed for high load capacity, are available. Types EA, C, and CD have pressed steel cages; and type CA has machined brass cages. Type EA has especially high load capacity, features low torque, and has a high-strength cage.



Quick Detail:

  1. Structure: spherical roller bearings
  2. Material: GCr15 GCr15SinMn
  3. Dimension: ID: 190mm OD: 400mm Width: 132mm
  4. Mass Weight: 82.00KGS
  5. Precision: P5, P6
  6. Number of Row: double
  7. Radial Clearance: C0, C2,C3, C4
  8. Noisy level: Z1, Z2
  9. Cage Material: Brass, Steel, Nylon
  10. Tolerence Level: ABEC-1, 3, 5, 7



Application:



Spherical bearings are used in countless applications, wherever rotational motion must be allowed to change the alignment of its rotation axis. A prime example is a tie rod on a vehicle suspension. The mechanics of the suspension allow the axle to moveup and down, but the linkages are designed to control that motion in one direction only and they must allow motion in the other directions. Spherical bearings have been used in car suspensions, driveshafts, heavy machinery, ing machines, and many other applications.



Competitive Advantage:


1.) Quality level: reach the same level as the Japanese and European bearings
2.) Tolerance level: ABEC-1 (P0), ABEC-3 (P6)
3.) 12 Years Export Business Experience

4.) Reasonable price with Super High quality goods

5.) Work with passion & Serve with LOVE




High Precision Spherical Roller Bearing With Two Structures High Tolerance 0



Bearing No. Boundary Dimensions (mm) Basic Load Rating (KN) Mass
d D B C Co kg
21307 21307 K 21307 W33 35 80 21 70.70 73.30 0.547
21308 21308 K 21308 W33 40 90 23 87.60 92.00 0.751
21309 21309 K 21309 W33 45 100 25 105.00 112.00 1.010
21310 21310 K 21310 W33 50 110 27 121.00 129.00 1.300
21311 21311 K 21311 W33 55 120 29 141.00 152.00 1.660
21312 21312 K 21312 W33 60 130 31 165.00 175.00 1.990
21313 21313 K 21313 W33 65 140 33 186.00 197.00 2.450
21314 21314 K 21314 W33 70 150 35 206.00 223.00 2.980
21315 21315 K 21315 W33 75 160 37 249.00 270.00 3.630
21316 21316 K 21316 W33 80 170 39 272.00 306.00 4.290
21317 21317 K 21317 W33 85 180 41 297.00 351.00 5.190
21318 21318 K 21318 W33 90 190 43 320.00 387.00 6.090
21319 21319 K 21319 W33 95 200 45 366.00 500.00 7.150
21320 21320 K 21320 W33 100 215 47 397.00 546.00 8.810
21322 21322 K 21322 W33 110 240 50 460.00 634.00 9.460



Bearing No. Boundary Dimensions (mm) Basic Load Rating (KN) Mass
d D B C Co kg
22206 22206 K 22206 W33 30 62 20 30.5 38.2 0.30
22207 22207 K 22207 W33 35 72 23 45.2 59.5 0.43
22208 22208 K 22208 W33 40 80 23 49.8 68.5 0.55
22209 22209 K 22209 W33 45 85 23 52.2 73.2 0.59
22210 22210 K 22210 W33 50 90 23 52.2 73.2 0.87
22211 22211 K 22211 W33 55 100 25 60.0 87.2 0.86
22212 22212 K 22212 W33 60 110 28 81.8 112.0 1.22
22213 22213 K 22213 W33 65 120 31 88.5 128.0 1.63
22214 22214 K 22214 W33 70 125 31 95.0 142.0 1.66
22215 22215 K 22215 W33 75 130 31 95.0 142.0 1.75
22216 22216 K 22216 W33 80 140 33 115.0 180.0 2.20
22217 22217 K 22217 W33 85 150 36 145.0 228.0 2.80
22218 22218 K 22218 W33 90 160 40 168.0 272.0 4.00
22219 22219 K 22219 W33 95 170 43 212.0 322.0 4.20
22220 22220 K 22220 W33 100 180 46 222.0 358.0 5.00
22222 22222 K 22222 W33 110 200 53 288.0 465.0 7.40
22224 22224 K 22224 W33 120 215 58 342.0 565.0 9.20
22226 22226 K 22226 W33 130 230 64 408.0 708.0 11.20
22228 22228 K 22228 W33 140 250 68 478.0 805.0 14.50
22230 22230 K 22230 W33 150 270 73 508.0 875.0 18.57
22232 22232 K 22232 W33 160 290 80 879.0 1220.0 22.80
22234 22234 K 22234 W33 170 310 86 983.0 1380.0 29.20
22236 22236 K 22236 W33 180 320 86 1040.0 1490.0 30.00
22238 22238 K 22238 W33 190 340 92 1150.0 1700.0 37.30
22240 22240 K 22240 W33 200 360 98 1290.0 1910.0 43.20
22244 22244 K 22244 W33 220 400 108 1560.0 2260.0 59.50



Bearing No. Boundary Dimensions (mm) Basic Load Rating (KN) Mass
d D B C Co kg
22308 22308 K 22308 W33 40 90 33 73.5 90.5 1.0
22309 22309 K 22309 W33 45 100 36 108.0 140.0 1.4
22310 22310 K 22310 W33 50 110 40 128.0 170.0 1.9
22311 22311 K 22311 W33 55 120 43 155.0 198.0 2.4
22312 22312 K 22312 W33 60 130 46 168.0 225.0 3.0
22313 22313 K 22313 W33 65 140 48 188.0 252.0 3.6
22314 22314 K 22314 W33 70 150 51 230.0 315.0 4.4
22315 22315 K 22315 W33 75 160 55 262.0 388.0 5.4
22316 22316 K 22316 W33 80 170 58 288.0 405.0 6.4
22317 22317 K 22317 W33 85 180 60 308.0 440.0 7.4
22318 22318 K 22318 W33 90 190 64 365.0 542.0 8.8
22319 22319 K 22319 W33 95 200 67 385.0 570.0 10.3
22320 22320 K 22320 W33 100 215 73 450.0 668.0 13.0
22322 22322 K 22322 W33 110 240 80 545.0 832.0 18.1
22324 22324 K 22324 W33 120 260 86 645.0 992.0 22.0
22326 22326 K 22326 W33 130 280 93 722.0 1140.0 29.0
22328 22328 K 22328 W33 140 300 102 825.0 1340.0 36.0
22330 22330 K 22330 W33 150 320 108 1270.0 1750.0 43.7
22332 22332 K 22332 W33 160 340 114 1350.0 1860.0 51.9
22334 22334 K 22334 W33 170 360 120 1110.0 1760.0 61.1
22336 22336 K 22336 W33 180 380 126 1640.0 2290.0 71.4
22338 22338 K 22338 W33 190 400 132 1810.0 2540.0 82.7
22340 22340 K 22340 W33 200 420 138 1990.0 2800.0 95.2
22344 22344 K 22344 W33 220 460 145 2290.0 3250.0 121.0
22348 22348 K 22348 W33 240 500 155 1780.0 3340.0 151.0
22352 22352 K 22352 W33 260 540 165 2260.0 4310.0 185.0
22356 22356 K 22356 W33 280 580 175 2490.0 4780.0 233.0
