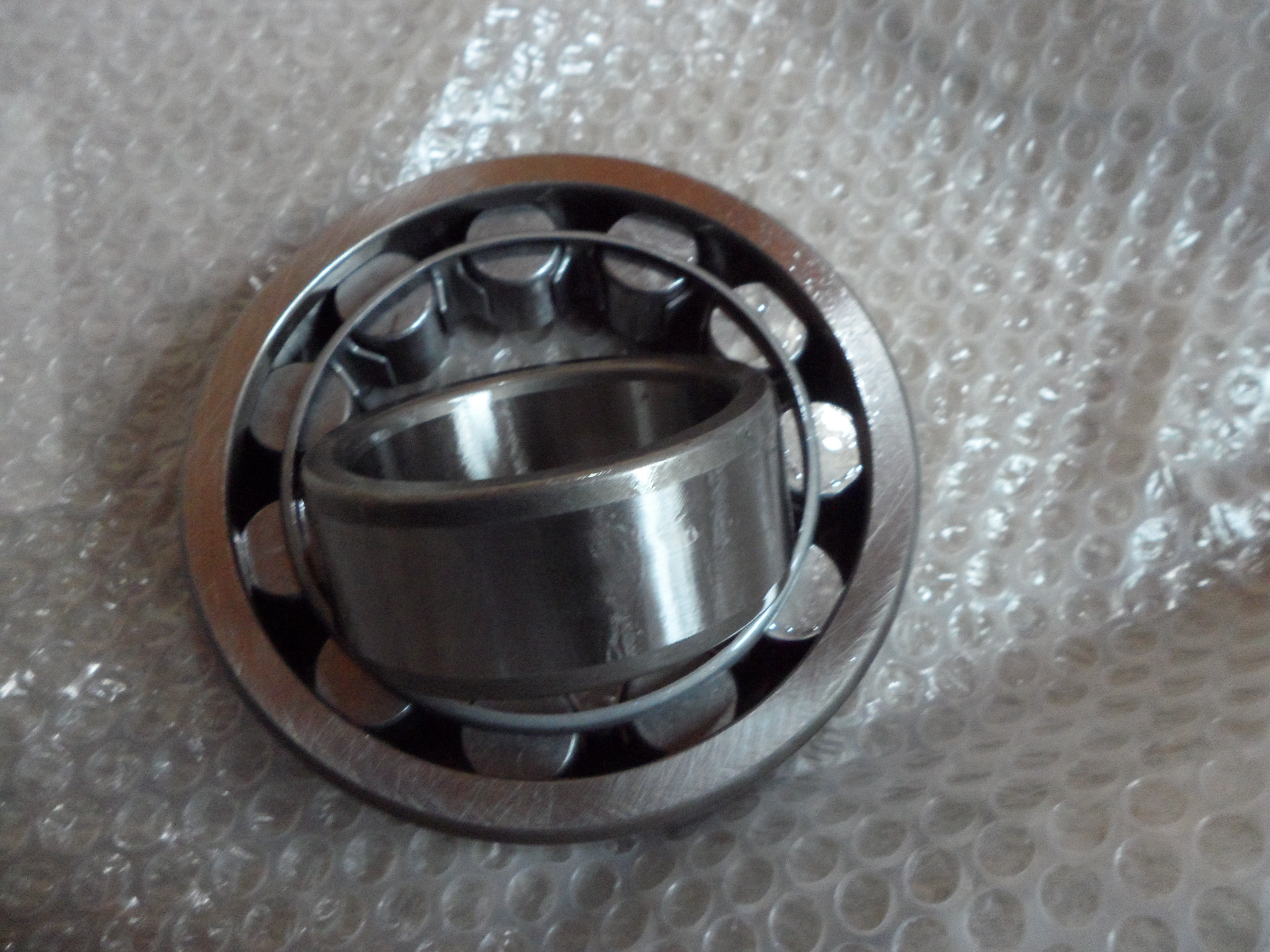

High Precision Double Row Cylindrical Roller Bearing 100mm Bore Nylon Cage

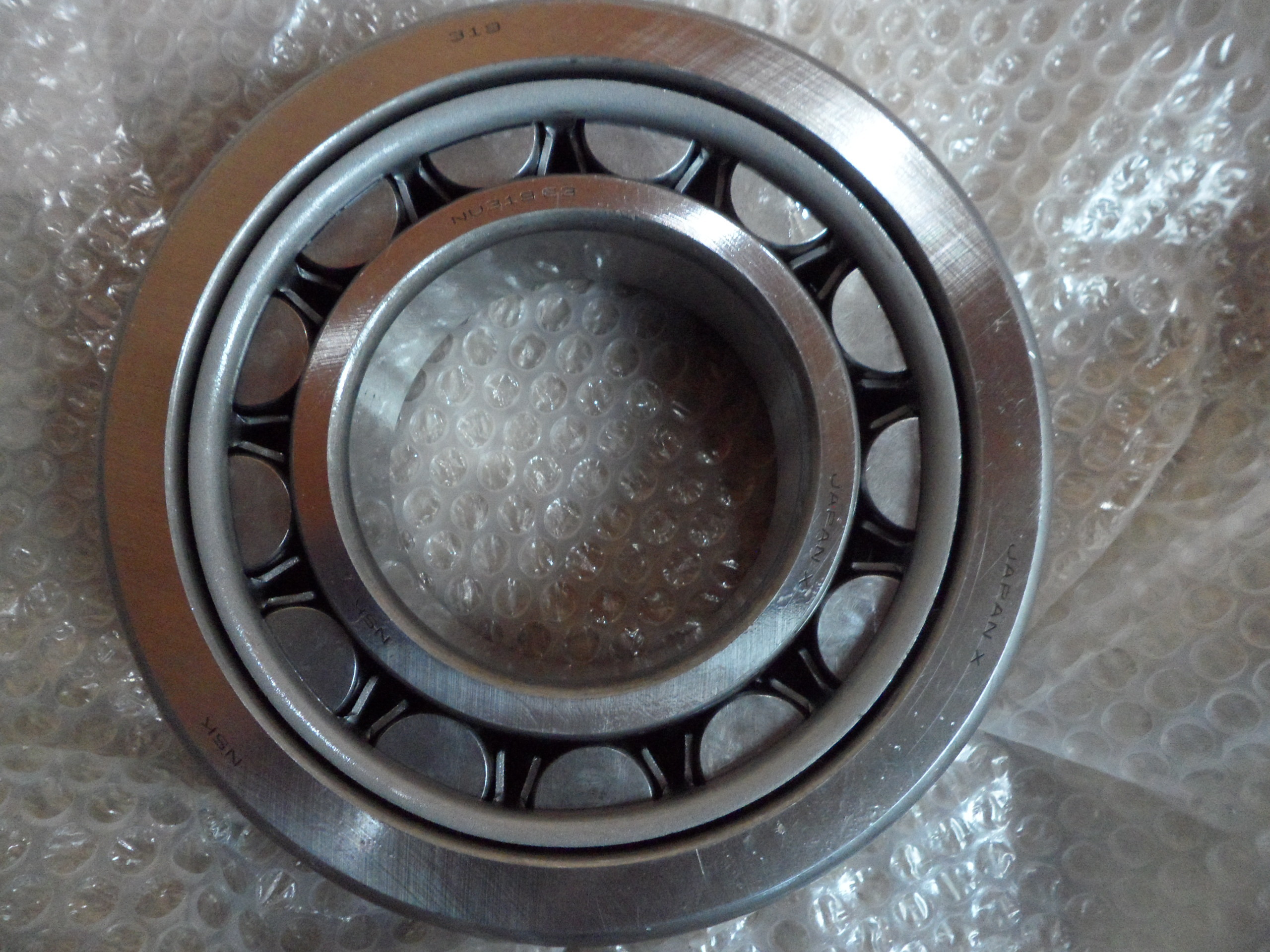

Stainless Steel Spindle Cylindrical Roller Bearing Single Row NU 2320  E , 40mm Bore

Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

Feature:

High load carrying capacity

High stiffness

Accommodate axial displacement
Except for bearings with flanges on both the inner and outer rings.

Low friction (Roller end / flange contact area)
The open flange design , together with the roller end design and surface finish, promote lubricant film formation resulting in lower friction and higher axial load carrying capacity.

Long service life
The logarithmic roller profile reduces edge stresses at the roller/raceway contact and sensitivity to misalignment and shaft deflection.

Enhanced operational reliability
The surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.

Separable and interchangeable
The separable components of SKF cylindrical roller bearings are interchangeable . This facilitates mounting and dismounting, as well as maintenance inspections.

Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and NNF designs
