Double Row Spherical Roller Thrust Bearing , 23228 / 23228K Metric Spherical Bearing
Description: | Spherical Roller Bearing Double Row 23228 | Number Of Row: | Double Row |
---|---|---|---|
Cage Material: | Steel ,Copper Alloy | Payment Term: | T/T,L/C |
High Light: | spherical roller thrust bearing,sealed spherical roller bearings |

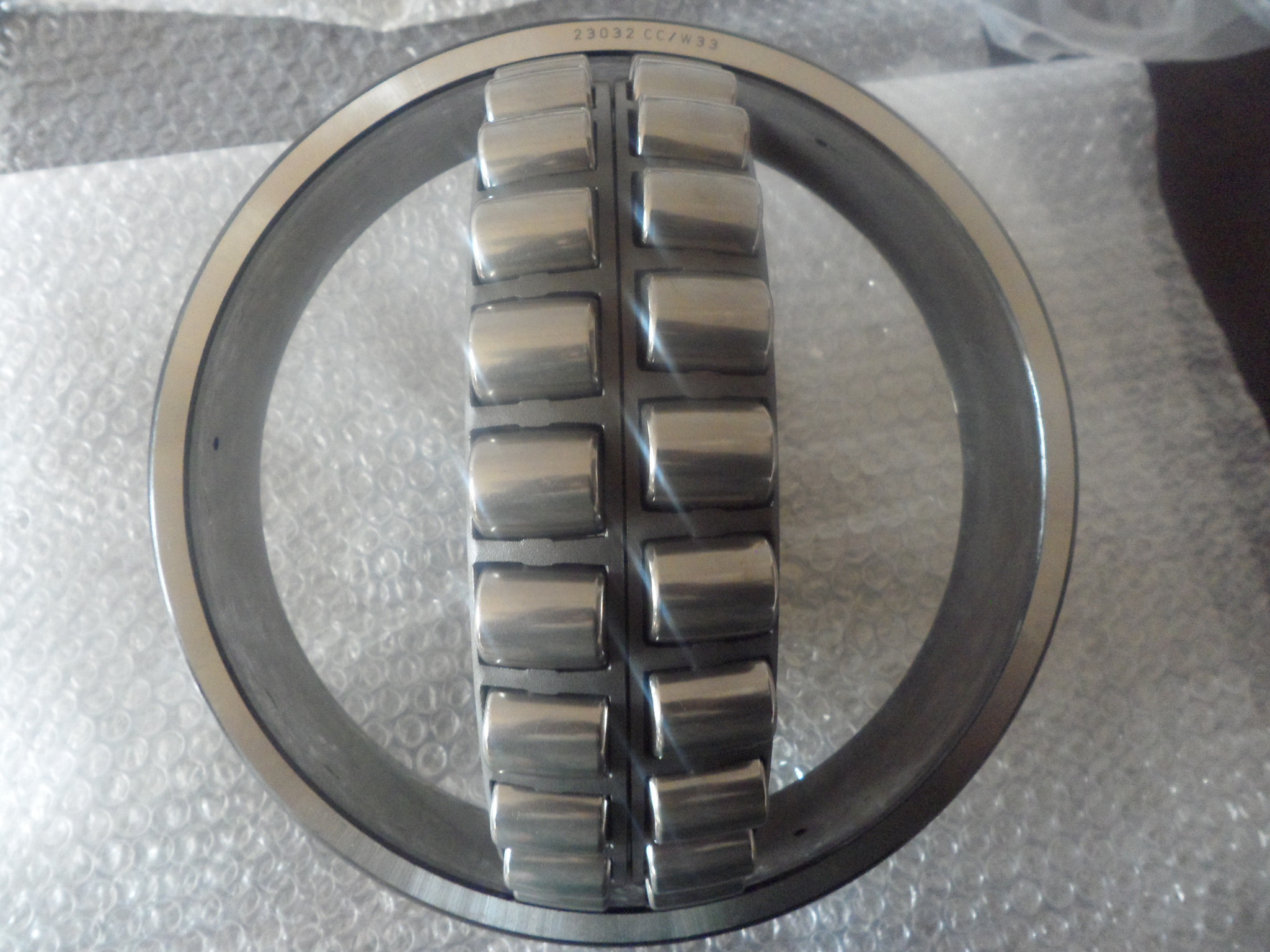

NSK Spherical Roller Bearing Double Row 23228 / 23228K With P5 / P6 Precision
Bearing Description:
Spherical roller bearing is a rolling-element bearing that permits rotation with low friction,and permits angular misalignment. Typically spherical roller bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. Most spherical roller bearing is designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load.
Feature:
- Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength.
2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear.
3. Offer advanced material options: Super TF and TL steel, depending on application requirements.
4. Advanced Technology - patented Molded Oil lubrication system is also available.
5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available
6. Seal Technology - offers different sealing materials depending on the operating temperature of the bearing.
7. Cage Materials – Available in steel, brass or polyamide depending on the requirements of the application.
8. Manufacturing Technology – Advanced production system guarantees outstandingquality control.
9. Life – up to 2 times the operating life of industry standard spherical roller bearing.
10. Reduced maintenance costs – downsizing to smaller bearings while improving performance and lengthening equipment operating life.
Application Area:
Spherical roller bearing are used in a variety of applications. Examples include mining, petroleum production, power generation, power transmission, cement processing, aggregate crushing, and metal recycling. Some spherical roller bearings are used in briquetting machines, rubber mixing equipment, rolling mills, rotary dryers, or pulp and paper machinery. Others are used in construction equipment, crushers, electric motors, blowers and fans, gears and drives, plastics machinery, machine tools and traction motors and pumps.
Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
d | D | B | C | Co | kg | |||
21307 | 21307 K | 21307 W33 | 35 | 80 | 21 | 70.70 | 73.30 | 0.547 |
21308 | 21308 K | 21308 W33 | 40 | 90 | 23 | 87.60 | 92.00 | 0.751 |
21309 | 21309 K | 21309 W33 | 45 | 100 | 25 | 105.00 | 112.00 | 1.010 |
21310 | 21310 K | 21310 W33 | 50 | 110 | 27 | 121.00 | 129.00 | 1.300 |
21311 | 21311 K | 21311 W33 | 55 | 120 | 29 | 141.00 | 152.00 | 1.660 |
21312 | 21312 K | 21312 W33 | 60 | 130 | 31 | 165.00 | 175.00 | 1.990 |
21313 | 21313 K | 21313 W33 | 65 | 140 | 33 | 186.00 | 197.00 | 2.450 |
21314 | 21314 K | 21314 W33 | 70 | 150 | 35 | 206.00 | 223.00 | 2.980 |
21315 | 21315 K | 21315 W33 | 75 | 160 | 37 | 249.00 | 270.00 | 3.630 |
21316 | 21316 K | 21316 W33 | 80 | 170 | 39 | 272.00 | 306.00 | 4.290 |
21317 | 21317 K | 21317 W33 | 85 | 180 | 41 | 297.00 | 351.00 | 5.190 |
21318 | 21318 K | 21318 W33 | 90 | 190 | 43 | 320.00 | 387.00 | 6.090 |
21319 | 21319 K | 21319 W33 | 95 | 200 | 45 | 366.00 | 500.00 | 7.150 |
21320 | 21320 K | 21320 W33 | 100 | 215 | 47 | 397.00 | 546.00 | 8.810 |
21322 | 21322 K | 21322 W33 | 110 | 240 | 50 | 460.00 | 634.00 | 9.460 |
Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
d | D | B | C | Co | kg | |||
22206 | 22206 K | 22206 W33 | 30 | 62 | 20 | 30.5 | 38.2 | 0.30 |
22207 | 22207 K | 22207 W33 | 35 | 72 | 23 | 45.2 | 59.5 | 0.43 |
22208 | 22208 K | 22208 W33 | 40 | 80 | 23 | 49.8 | 68.5 | 0.55 |
22209 | 22209 K | 22209 W33 | 45 | 85 | 23 | 52.2 | 73.2 | 0.59 |
22210 | 22210 K | 22210 W33 | 50 | 90 | 23 | 52.2 | 73.2 | 0.87 |
22211 | 22211 K | 22211 W33 | 55 | 100 | 25 | 60.0 | 87.2 | 0.86 |
22212 | 22212 K | 22212 W33 | 60 | 110 | 28 | 81.8 | 112.0 | 1.22 |
22213 | 22213 K | 22213 W33 | 65 | 120 | 31 | 88.5 | 128.0 | 1.63 |
22214 | 22214 K | 22214 W33 | 70 | 125 | 31 | 95.0 | 142.0 | 1.66 |
22215 | 22215 K | 22215 W33 | 75 | 130 | 31 | 95.0 | 142.0 | 1.75 |
22216 | 22216 K | 22216 W33 | 80 | 140 | 33 | 115.0 | 180.0 | 2.20 |
22217 | 22217 K | 22217 W33 | 85 | 150 | 36 | 145.0 | 228.0 | 2.80 |
22218 | 22218 K | 22218 W33 | 90 | 160 | 40 | 168.0 | 272.0 | 4.00 |
22219 | 22219 K | 22219 W33 | 95 | 170 | 43 | 212.0 | 322.0 | 4.20 |
22220 | 22220 K | 22220 W33 | 100 | 180 | 46 | 222.0 | 358.0 | 5.00 |
22222 | 22222 K | 22222 W33 | 110 | 200 | 53 | 288.0 | 465.0 | 7.40 |
22224 | 22224 K | 22224 W33 | 120 | 215 | 58 | 342.0 | 565.0 | 9.20 |
22226 | 22226 K | 22226 W33 | 130 | 230 | 64 | 408.0 | 708.0 | 11.20 |
22228 | 22228 K | 22228 W33 | 140 | 250 | 68 | 478.0 | 805.0 | 14.50 |
22230 | 22230 K | 22230 W33 | 150 | 270 | 73 | 508.0 | 875.0 | 18.57 |
22232 | 22232 K | 22232 W33 | 160 | 290 | 80 | 879.0 | 1220.0 | 22.80 |
22234 | 22234 K | 22234 W33 | 170 | 310 | 86 | 983.0 | 1380.0 | 29.20 |
22236 | 22236 K | 22236 W33 | 180 | 320 | 86 | 1040.0 | 1490.0 | 30.00 |
22238 | 22238 K | 22238 W33 | 190 | 340 | 92 | 1150.0 | 1700.0 | 37.30 |
22240 | 22240 K | 22240 W33 | 200 | 360 | 98 | 1290.0 | 1910.0 | 43.20 |
22244 | 22244 K | 22244 W33 | 220 | 400 | 108 | 1560.0 | 2260.0 | 59.50 |
Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
d | D | B | C | Co | kg | |||
22308 | 22308 K | 22308 W33 | 40 | 90 | 33 | 73.5 | 90.5 | 1.0 |
22309 | 22309 K | 22309 W33 | 45 | 100 | 36 | 108.0 | 140.0 | 1.4 |
22310 | 22310 K | 22310 W33 | 50 | 110 | 40 | 128.0 | 170.0 | 1.9 |
22311 | 22311 K | 22311 W33 | 55 | 120 | 43 | 155.0 | 198.0 | 2.4 |
22312 | 22312 K | 22312 W33 | 60 | 130 | 46 | 168.0 | 225.0 | 3.0 |
22313 | 22313 K | 22313 W33 | 65 | 140 | 48 | 188.0 | 252.0 | 3.6 |
22314 | 22314 K | 22314 W33 | 70 | 150 | 51 | 230.0 | 315.0 | 4.4 |
22315 | 22315 K | 22315 W33 | 75 | 160 | 55 | 262.0 | 388.0 | 5.4 |
22316 | 22316 K | 22316 W33 | 80 | 170 | 58 | 288.0 | 405.0 | 6.4 |
22317 | 22317 K | 22317 W33 | 85 | 180 | 60 | 308.0 | 440.0 | 7.4 |
22318 | 22318 K | 22318 W33 | 90 | 190 | 64 | 365.0 | 542.0 | 8.8 |
22319 | 22319 K | 22319 W33 | 95 | 200 | 67 | 385.0 | 570.0 | 10.3 |
22320 | 22320 K | 22320 W33 | 100 | 215 | 73 | 450.0 | 668.0 | 13.0 |
22322 | 22322 K | 22322 W33 | 110 | 240 | 80 | 545.0 | 832.0 | 18.1 |
22324 | 22324 K | 22324 W33 | 120 | 260 | 86 | 645.0 | 992.0 | 22.0 |
22326 | 22326 K | 22326 W33 | 130 | 280 | 93 | 722.0 | 1140.0 | 29.0 |
22328 | 22328 K | 22328 W33 | 140 | 300 | 102 | 825.0 | 1340.0 | 36.0 |
22330 | 22330 K | 22330 W33 | 150 | 320 | 108 | 1270.0 | 1750.0 | 43.7 |
22332 | 22332 K | 22332 W33 | 160 | 340 | 114 | 1350.0 | 1860.0 | 51.9 |
22334 | 22334 K | 22334 W33 | 170 | 360 | 120 | 1110.0 | 1760.0 | 61.1 |
22336 | 22336 K | 22336 W33 | 180 | 380 | 126 | 1640.0 | 2290.0 | 71.4 |
22338 | 22338 K | 22338 W33 | 190 | 400 | 132 | 1810.0 | 2540.0 | 82.7 |
22340 | 22340 K | 22340 W33 | 200 | 420 | 138 | 1990.0 | 2800.0 | 95.2 |
22344 | 22344 K | 22344 W33 | 220 | 460 | 145 | 2290.0 | 3250.0 | 121.0 |
22348 | 22348 K | 22348 W33 | 240 | 500 | 155 | 1780.0 | 3340.0 | 151.0 |
22352 | 22352 K | 22352 W33 | 260 | 540 | 165 | 2260.0 | 4310.0 | 185.0 |
22356 | 22356 K | 22356 W33 | 280 | 580 | 175 | 2490.0 | 4780.0 | 233.0 |
Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
d | D | B | C | Co | kg | |||
23022 | 23022 K | 23022 W33 | 110 | 170 | 45 | 304 | 489 | 3.79 |
23024 | 23024 K | 23024 W33 | 120 | 180 | 46 | 317 | 514 | 4.10 |
23026 | 23026 K | 23026 W33 | 130 | 200 | 52 | 401 | 660 | 6.02 |
23028 | 23028 K | 23028 W33 | 140 | 210 | 53 | 415 | 689 | 6.43 |
23030 | 23030 K | 23030 W33 | 150 | 225 | 56 | 467 | 789 | 7.81 |
23032 | 23032 K | 23032 W33 | 160 | 240 | 60 | 538 | 917 | 9.56 |
23034 | 23034 K | 23034 W33 | 170 | 260 | 90 | 800 | 1470 | 17.60 |
23036 | 23036 K | 23036 W33 | 180 | 280 | 74 | 702 | 1170 | 17.30 |
23038 | 23038 K | 23038 W33 | 190 | 290 | 75 | 781 | 1360 | 18.20 |
23040 | 23040 K | 23040 W33 | 200 | 310 | 82 | 867 | 1470 | 23.30 |
23044 | 23044 K | 23044 W33 | 220 | 340 | 90 | 1030 | 1790 | 31.00 |
23048 | 23048 K | 23048 W33 | 240 | 360 | 92 | 1130 | 2080 | 34.30 |
23052 | 23052 K | 23052 W33 | 260 | 400 | 104 | 1420 | 2520 | 49.80 |
23056 | 23056 K | 23056 W33 | 280 | 420 | 106 | 1480 | 2710 | 53.80 |
23060 | 23060 K | 23060 W33 | 300 | 460 | 118 | 1810 | 3280 | 74.50 |
Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
d | D | B | C | Co | kg | |||
23218 | 23218 K | 23218 W33 | 90 | 160 | 52.4 | 316 | 453 | 4.64 |
23219 | 23219 K | 23219 W33 | 95 | 170 | 43 | 273 | 359 | 4.32 |
23220 | 23220 K | 23220 W33 | 100 | 180 | 60.3 | 405 | 589 | 6.81 |
23222 | 23222 K | 23222 W33 | 110 | 200 | 69.8 | 528 | 786 | 9.79 |
23224 | 23224 K | 23224 W33 | 120 | 215 | 76 | 592 | 904 | 12.1 |
23226 | 23226 K | 23226 W33 | 130 | 230 | 80 | 670 | 1020 | 14.3 |
23228 | 23228 K | 23228 W33 | 140 | 250 | 88 | 818 | 1230 | 18.9 |
23230 | 23230 K | 23230 W33 | 150 | 270 | 96 | 925 | 1450 | 24.3 |
23232 | 23232 K | 23232 W33 | 160 | 290 | 104 | 1050 | 1670 | 30.6 |
23234 | 23234 K | 23234 W33 | 170 | 310 | 110 | 1230 | 1970 | 37.4 |
23236 | 23236 K | 23236 W33 | 180 | 320 | 112 | 1270 | 2050 | 39.5 |
23238 | 23238 K | 23238 W33 | 190 | 340 | 120 | 1420 | 2340 | 48 |
23240 | 23240 K | 23240 W33 | 200 | 360 | 128 | 730 | 2620 | 57.8 |
23244 | 23244 K | 23244 W33 | 220 | 400 | 144 | 1960 | 3270 | 81.5 |
23248 | 23248 K | 23248 W33 | 240 | 440 | 160 | 2450 | 4110 | 111 |
