Deep Groove Sealed Ball Bearings / 16001-2Z U Groove Bearing Chrome Steel
Name: | Deep Groove Sealed Ball Bearings | Quality Standard: | ISO9001:2008 |
---|---|---|---|
Clearance: | C2,C0,c3 | Precision Rating: | P6 |
High Light: | v groove ball bearing,double row deep groove ball bearings |

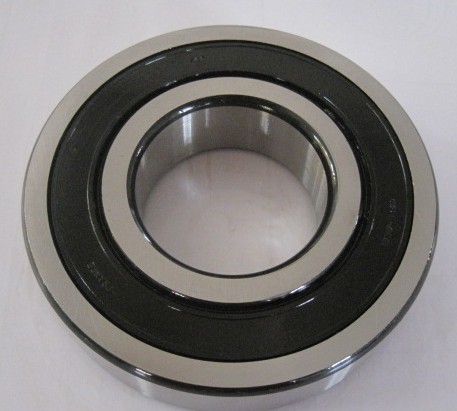

Deep Groove sealed Ball Bearing 16001-2Z
1. Deep Groove Ball Bearing Information:
Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring. This close clearance labyrinth seal retains the lubricant and prevents the entrance of foreign matter. Sealed bearings incorporate steel reinforced rubber seals securely fastened to a groove on the outer ring. Contact with the inner ring is by sealing lip (Contact Suffix LLU). Or, non-contact with the inner ring is by labyrinth seal (Non-contact Suffix LLB) to provide positive sealing at all times.
2. Deep Groove Ball Bearing Application:
This bearings can be used: After ing equipment, machine tool spindles, plug-in, ordinary type cooling tower, resistance welding machine, aging furnace, hobbing machine, environmental protection equipment, whirlpool pump, ceramics engraving machine, metal packaging machinery, fishing machinery, high pressure reactor, offset printing, aerospace, rubber granulating machine, plastic machine, chip conveyor, and so on purpose.
Features:
1: Can withstand radial load and bidirectional axial load
2: Suitable for high-speed rotation and require low noise, low vibration of the occasion
3: With a steel plate dust cover or rubber seal seal bearing in advance filled with the right amount of grease;
Bearing Model | 16001-2Z |
Type | Deep groove ball bearing |
Bore Size (mm) | 12 |
Outside Diameter (mm) | 28 |
Width (mm) | 7 |
Mass (kg) | 0.019 |
Material | Chrome Steel, Carbon steel, Stainless steel |
Cage Material | Nylon |
Number of Row | Single Row |
Precision Rating | P5. P6 |
Basic Dynamic Load Rating (Cr) | 23.4 kN |
Basic Static Load Rating (Cor) | 11.6 kN |
Limiting Speed | 7500 r/min |
Packing & Delivery:
Single box--Paper carton--Wooden case
3-5 days upon your confirmation of the order
Specifications:
1. High precision bearings
2. ISO standard
3. Material:Gcr15 High- carbon chrome steel
Our Service
1. We are a manufacturer of producing bearing for more than ten years of experience in product.
2. The Most advanced machinery and a strict quality control team.
3. On-time delivery service.
4. Accept non-standard production according to customers’ requirement.
5. High level of performance, quality, of all equipment and service.
6. Promptness in technical support pre- and after sales.
Bearing No. | Inner diameter | Outer diameter | Width | Rated load | Steel ball parameters | Limit speed(RPM) | Weight | |||
Dynamic | Static | No. | Size | Grease | Oil | |||||
d | D | B | Cr | Cor | mm | r/min | r/min | KG | ||
16001 | 12 | 28 | 7 | 5.1 | 2.4 | 8 | 4.763 | 26000 | 3000 | 0.019 |
16002 | 15 | 32 | 8 | 5.6 | 2.8 | 9 | 4.763 | 22000 | 26000 | 0.025 |
16003 | 17 | 35 | 8 | 6.8 | 3.35 | 10 | 4.763 | 20000 | 24000 | 0.032 |
16004 | 20 | 42 | 8 | 7.9 | 4.5 | 10 | 5.556 | 18000 | 21000 | 0.051 |
16005 | 25 | 47 | 8 | 8.35 | 5.1 | 12 | 5.556 | 15000 | 18000 | 0.059 |
16006 | 30 | 55 | 9 | 11.2 | 7.4 | 12 | 6.35 | 13000 | 15000 | 0.091 |
16007 | 35 | 62 | 9 | 11.7 | 8.2 | 14 | 6.35 | 12000 | 14000 | 0.107 |
16008 | 40 | 68 | 9 | 12.6 | 9.65 | 15 | 6.35 | 10000 | 12000 | 0.125 |
16009 | 45 | 75 | 10 | 12.9 | 10.5 | 16 | 6.35 | 9200 | 11000 | 0.171 |
16010 | 50 | 80 | 10 | 13.2 | 11.3 | 16 | 7.144 | 8400 | 9800 | 0.18 |
16011 | 55 | 90 | 11 | 18.6 | 15.3 | 16 | 7.938 | 7700 | 9000 | 0.258 |
16012 | 60 | 95 | 11 | 20 | 17.5 | 18 | 7.144 | 7000 | 8300 | 0.283 |
16013 | 65 | 100 | 11 | 20.5 | 18.7 | 20 | 7.144 | 6500 | 7700 | 0.307 |
16014 | 70 | 110 | 13 | 24.4 | 22.6 | 15 | 9.525 | 6100 | 7100 | 0.441 |
16015 | 75 | 115 | 13 | 25 | 24 | 16 | 9.525 | 5700 | 6700 | 0.464 |
16016 | 80 | 125 | 14 | 25.4 | 25.1 | 15 | 11.112 | 5300 | 6200 | 0.597 |
16017 | 85 | 130 | 14 | 25.9 | 26.2 | 16 | 11.112 | 5000 | 5900 | 0.626 |
16018 | 90 | 140 | 16 | 33.5 | 33.5 | 15 | 12.7 | 4700 | 5600 | 0.848 |
. . . |
||||||||||
16052 | 260 | 400 | 44 | 235 | 310 | 1100 | 1500 | 22.5 |
