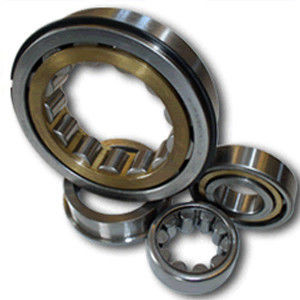

Chrome Steel Cylindrical Roller Bearing 50mm Bore With Single Row
Cylindrical roller bearing is a cylindrical roller and raceway for connecting angle bearings, bearing capacity is large, mainly bear radial load. The friction between the rolling body and the ring edge is small, which is suitable for high-speed rotation. If the rings are broken, they can be divided into single row bearings, NU, NJ, NUP, N, NF and NNU NN double row bearings. The bearing is a detachable structure in the inner ring and outer ring.
Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single and double row full complement bearings (without a cage) and split bearings complete the standard assortment provided here.
Application:
These bearings are the most common type and are used in a wide variety of applications. Such as Steel Industry , Mining & Construction , Papermaking Machinery , Wind Turbines , Machine Tools , Gearboxes , Electric Motors , Pumps & Compressors , Injection Molding , Motorcycles , Railways, etc.
Bearing Model | N310 |
Type | Cylindrical Roller Bearing |
Bore Size | 50 mm |
Outside Diameter | 110 mm |
Width | 27 mm |
Mass | 1.11kg/pc |
Material | Chrome Steel, Carbon steel, Stainless steel |
Cage Material | Nylon. Steel. Brass |
Precision Rating | P5. P6 |
Basic Dynamic Load Rating (Cr) | 87 kN |
Basic Static Load Rating (Cor) | 86 kN |
Limiting Speeds (grease) | 5600 r/min |
Quick description:
Model:N310
Dimension:50x110x27mm
Bore Size:50mm
Outside Diameter:110mm
Width:27mm
Basic Dynamic Load Rating: 87kN
Basic Static Load Rating: 86kN
Limiting Speed:5600r/min
Mass:1.11kg
Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel
Cage Material: Brass,Steel,Nylon
Package: Usually made by plastic tube+anti-rust paper+box+carton
Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union
Delivery Time: 3-25 days, according to the order quantity
Application of Cylindrical Roller Bearing: motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.
Single row: NU, NJ, NUP, N, NCF and NJG designs
Double row: NNU, NN and NNF designs
