Brass Cage Taper Roller Bearing 32304 20X52X21mm Taper Bore Size 20mm

  • Brass Cage Taper Roller Bearing 32304 20X52X21mm Taper Bore Size 20mm
Place of Origin: Japan
Brand Name: NSK
Certification: ISO9001:2008
Model Number: 32304
Minimum Order Quantity: 1pc
Price: USD 0.1-1000/pc
Packaging Details: Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton
Payment Terms: TT, Western Union, MoneyGram,
Supply Ability: 10000pcs/month
Product Details
Type: Tapered Roller Bearings Bore Size: 20mm
Precision Rating: P0 P6 P5 P4 P2 Vibration: Z1V1 Z2V2 Z3V3 Z4V4
High Light:

sealed tapered roller bearings

,

tapered roller thrust bearing
Leave a Message
Product Description

Brass Cage Taper Roller Bearing 32304 20X52X21mm Taper Bore Size 20mm





Introdution



Tapered roller bearings mainly bear radial diameter, axial joint load. Load bearing capacity depends on the outer ring raceway angle, angle the greater carrying capacity. These bearings are separable bearings, according to the number of columns bearing rolling elements into single row, double row and four row tapered roller bearings. Single row tapered roller bearing clearance to be user adjusted during installation; double row and four row tapered roller bearing clearance in the factory based on the given user requirements, users do not need to adjust.
Tapered roller bearings have tapered inner and outer ring raceways, tapered rollers are arranged between the two. All conical surface projection lines are a little get together with the bearing axis. This design makes tapered roller bearings particularly suitable for the accommodation of combined (radial and axial) loads. Most of axial load bearing capacity is determined by the contact angle ; greater the angle, the higher the axial load capacity. Angle size to calculate the coefficient e; e value, the greater the contact angle, the bearing axial load greater applicability.



Features of roller bearing



The roller and the raceway are in line contact or underline contact.

Large radial load, carrying capacity and friction coefficient is small.

Suitable for high speed runing equipment.

nner ring and outer ring can be separated, easy to install and remove.



Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity


Description
All types tapered roller bearings
Structure
Tapered roller bearings
Brand name
As the customer's requirement
Quality standard
ISO9001:2008
Services
OEM Based on your Aboriginal
Delivery time
5-20 days
Bearing package
Box ,carton ,pallet
Payment term
L/C ,T/T
Species
All models
Material
Chromium steel (main), carbon steel, stainless steel, ceramic
30000 series
30202,30203,30205,30206,30207,30302,30303,30305,30308,30352 ect
31000 series
31305,31306,31307,31308,31310,31311,31312,31313,31314,31319 ect
32000 series
32204,32204,32206,32209,32210,32303,32304,32305,32306,32334 ect
33000 Series
33205,33206,33207,33209,33210,33217,33108,33109,33110,33118 ect

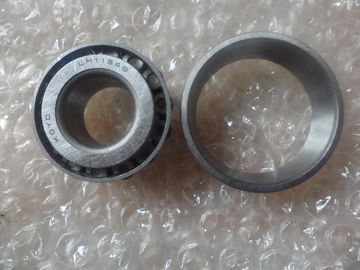

Products Show:

Brass Cage Taper Roller Bearing 32304 20X52X21mm Taper Bore Size 20mm 0




Specification:
Brass Cage Taper Roller Bearing 32304 20X52X21mm Taper Bore Size 20mm 1



Bearing No. Dimensions (mm) Load Rating (KN) Mass
d D T B C R
min		 r
min		 C C0 kg
32004 20 42 15 15 12.0 1.0 1.0 25.1 28.2 0.095
32005 25 47 15 15 11.5 0.6 0.6 28.0 34.1 0.111
32006 30 55 17 17 13.0 1.0 1.5 40.0 45.0 0.175
32007 35 62 18 18 14.0 1.0 1.0 43.2 59.2 0.224
32008 40 68 19 19 14.5 1.0 1.0 55.0 62.0 0.270
32009 45 75 20 20 15.5 1.0 1.0 65.0 76.0 0.340
32010 50 80 20 20 15.5 1.0 1.0 67.0 79.0 0.360
32011 55 90 23 23 17.5 1.5 1.5 80.2 117.2 0.551
32012 60 95 23 23 17.5 1.5 1.5 81.7 122.2 0.590
32013 65 100 23 23 17.5 1.5 1.5 82.8 127.3 0.630
32014 70 110 25 25 19.0 1.5 1.5 104.3 160.1 0.850
32015 75 115 25 25 19.0 1.5 1.5 103.1 160.2 0.875
32016 80 125 29 29 22.0 1.5 1.5 141.0 220.0 1.270
32017 85 130 29 29 22.0 1.5 1.5 139.8 220.3 1.320
32018 90 140 32 32 24.0 2.0 1.5 171.3 271.0 1.730
32019 95 145 32 32 24.0 2.0 1.5 166.0 202.0 1.880
32020 100 150 32 32 24.0 2.0 1.5 173.1 281.7 1.873
32021 105 160 35 35 26.0 2.5 2.0 205.4 335.8 2.400
32022 110 170 38 38 29.0 2.5 2.0 245.7 403.4 2.972
32024 120 180 38 38 29.0 2.5 2.0 242.1 404.4 3.180
32026 130 200 45 45 34.0 2.5 2.0 340.0 563.0 5.040
32028 140 210 45 45 34.0 2.5 2.0 346.0 585.0 5.280



Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D T B C R
min		 r
min		 C C0 kg
32204 20 47 19.25 18 15 1.00 1.00 30.30 34.70 0.157
32205 25 52 19.25 18 16 1.00 1.00 41.30 49.20 0.200
32206 30 62 21.25 20 17 1.00 1.00 52.00 64.00 0.288
32207 35 72 24.25 23 19 1.50 1.50 70.60 89.50 0.447
32208 40 80 24.75 23 19 1.50 1.50 77.90 97.20 0.531
32209 45 85 24.75 23 19 1.50 1.50 81.00 104.00 0.576
32210 50 90 24.75 23 19 1.50 1.50 83.00 108.00 0.627
32211 55 100 26.75 25 21 2.00 1.50 108.00 142.30 0.853
32212 60 110 29.75 28 24 2.00 1.50 132.80 179.60 1.168
32213 65 120 32.75 31 27 2.00 1.50 160.90 221.70 1.544
32214 70 125 33.25 31 27 2.00 1.50 168.50 237.10 1.643
32215 75 130 33.25 31 27 2.00 1.50 170.30 242.10 1.750
32216 80 140 35.25 33 28 2.50 2.00 198.10 279.00 2.132
32217 85 150 38.50 36 30 2.50 2.00 226.70 324.00 2.680
32218 90 160 42.50 40 34 2.50 2.00 269.80 395.50 3.470
32219 95 170 45.50 43 37 3.00 2.50 302.50 448.40 4.240
32220 100 180 49.00 46 39 3.00 2.50 341.00 512.00 5.100
32221 105 190 53.00 50 43 3.00 2.50 380.00 540.00 6.250
32222 110 200 56.00 53 46 3.00 2.50 431.70 666.30 7.446



Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D T B C R
min		 r
min		 C C0 kg
32303 17 47 20.25 19 16 1.00 1.00 35.30 36.30 0.173
32304 20 52 22.25 21 18 1.50 1.50 46.00 47.50 0.241
32305 25 62 25.25 24 20 1.50 1.50 61.60 68.80 0.368
32306 30 72 28.75 27 23 1.50 1.50 81.60 96.40 0.563
32307 35 80 32.75 31 25 2.00 1.50 99.00 118.30 0.767
32308 40 90 35.25 33 27 2.00 1.50 115.70 147.80 1.049
32309 45 100 38.25 36 30 2.00 1.50 145.30 189.40 1.410
32310 50 110 42.25 40 33 2.50 2.00 177.50 236.10 1.936
32311 55 120 45.50 43 35 2.50 2.00 203.00 271.00 2.350
32312 60 130 48.50 46 37 3.00 2.50 226.70 303.00 2.900
32313 65 140 51.00 48 39 3.00 2.50 259.60 349.80 3.530
32314 70 150 54.00 51 42 3.00 2.50 298.90 408.50 4.350
32315 75 160 58.00 55 45 3.00 2.50 355.00 470.00 5.350
32316 80 170 61.50 58 48 3.00 2.50 378.00 497.00 6.320
32317 85 180 63.50 60 49 4.00 3.00 439.00 587.00 7.420
32318 90 190 67.50 64 53 4.00 3.00 461.00 614.00 8.610
32319 95 200 71.50 67 55 4.00 3.00 517.00 695.00 10.100
32320 100 215 77.50 73 60 4.00 3.00 491.00 637.00 12.200
Bearing No. Dimensions (mm) Load Rating (KN) Mass
d D T B C R
mIn		 r
min		 C C0 kg
30202 15 35 11.75 11 10 0.6 0.6 15.0 14.3 0.053
30203 17 40 13.25 12 11 1.0 1.0 20.7 21.9 0.082
30204 20 47 15.25 14 12 1.0 1.0 28.2 30.6 0.128
30205 25 52 16.25 15 13 1.0 1.0 32.2 37.0 0.153
30206 30 62 17.25 16 14 1.0 1.0 43.3 50.5 0.231
30207 35 72 18.25 17 15 1.5 1.5 54.2 63.5 0.332
30208 40 80 19.75 18 16 1.5 1.5 63.0 74.0 0.417
30209 45 85 20.75 19 16 1.5 1.5 67.9 83.6 0.473
30210 50 90 21.75 20 17 1.5 1.5 73.3 92.1 0.529
30211 55 100 22.75 21 18 2.0 1.5 90.8 113.7 0.715
30212 60 110 23.75 22 19 2.0 1.5 103.3 130.0 0.905
30213 65 120 24.75 23 20 2.0 1.5 120.6 152.6 1.130
30214 70 125 26.25 24 21 2.0 1.5 132.0 173.0 1.238
30215 75 130 27.25 25 22 2.0 1.5 138.4 185.4 1.360
30216 80 140 28.25 26 22 2.5 2.0 160.4 212.8 1.680
30217 85 150 30.50 28 24 2.5 2.0 177.6 236.8 2.060
30218 90 160 32.50 30 26 2.5 2.0 200.1 269.6 2.560
30219 95 170 34.50 32 27 3.0 2.5 226.6 309.0 3.060
30220 100 180 37.00 34 29 3.0 2.5 253.9 350.3 3.740
30221 105 190 39.00 36 30 3.0 2.5 285.3 398.6 4.380
30222 110 200 41.00 38 32 3.0 2.5 314.9 443.6 5.233



Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D T B C Rmin rmin C C0 kg
30302 15 42 14.25 13 11 1.00 1.00 22.90 21.60 0.094
30303 17 47 15.25 14 12 1.00 1.00 28.30 27.30 0.129
30304 20 52 16.25 15 13 1.50 1.50 33.10 33.20 0.166
30305 25 62 18.25 17 15 1.50 1.50 46.90 48.10 0.266
30306 30 72 20.75 19 16 1.50 1.50 59.00 63.10 0.385
30307 35 80 22.75 21 18 2.00 1.50 75.30 82.60 0.515
30308 40 90 25.25 23 20 2.00 1.50 90.90 107.60 0.748
30309 45 100 27.25 25 22 2.00 1.50 108.90 129.80 0.987
30310 50 110 29.25 27 23 2.50 2.00 130.10 157.10 1.289
30311 55 120 31.50 29 25 2.50 2.00 153.30 187.60 1.635
30312 60 130 33.50 31 26 3.00 2.50 171.00 210.00 1.956
30313 65 140 36.00 33 28 3.00 2.50 195.90 241.70 2.440
30314 70 150 38.00 35 30 3.00 2.50 219.00 271.70 2.980
30315 75 160 40.00 37 31 3.00 2.50 252.80 318.80 3.586
30316 80 170 42.50 39 33 3.00 2.50 279.00 352.00 4.263
30317 85 180 44.50 41 34 4.00 3.00 304.90 388.20 4.960
30318 90 190 46.50 43 36 4.00 3.00 336.00 407.00 5.780



Bearing No. Dimensions (mm) Load Rating (KN) Mass
d D T B C R
min		 r
min		 C C0 kg
31305 25 62 18.25 17 13 1.5 1.5 40.7 46.1 0.262
31306 30 72 20.75 19 14 1.5 1.5 52.0 60.0 0.389
31307 35 80 22.75 21 15 2.0 1.5 66.0 77.0 0.508
31308 40 90 25.25 23 17 2.0 1.5 81.0 96.0 0.722
31309 45 100 27.25 25 18 2.0 1.5 96.0 114.0 0.950
31310 50 110 29.25 27 19 2.5 2.0 108.0 128.0 1.230
31311 55 120 31.50 29 21 2.5 2.0 130.0 158.0 1.560
31312 60 130 33.50 31 22 3.0 2.5 145.4 176.8 1.920
31313 65 140 36.00 33 23 3.0 2.5 165.7 202.6 2.390
31314 70 150 38.00 35 25 3.0 2.5 186.9 231.0 2.870
31315 75 160 40.00 37 26 3.0 2.5 222.0 266.0 3.470
31316 80 180 42.50 39 27 3.0 2.5 236.0 282.0 4.120
31317 85 180 44.50 41 28 4.0 3.0 263.0 317.0 4.810
31318 90 190 46.50 43 30 4.0 3.0 282.0 336.0 5.600
