7315 Single Row Angular Contact Ball Bearing 75X160X37 High Precision Nylon Cage
Type: | High Precision Angular Ball Bearing | Material: | Bearing Steel |
---|---|---|---|
Clearance: | C0,C2,C3,C4 | Precision Rating: | P0 P6 P5 P4 P2 |
High Light: | sealed angular contact bearings,miniature angular contact bearings |

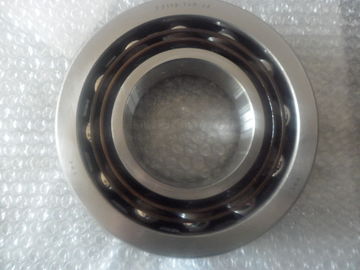

7315 Single Row Angular Contact Ball Bearing 75X160X37 High Precision Nylon Cage
1. Angular Contact Ball Bearing:
Single row angular contact ball bearings can carry axial load acting in one direction only. In many applications, angular contact ball bearings in pairs or muti-arrangement should be used. The axial load carrying capacity of angular contact ball bearings increase with the increase of contact angle.
Angular contact ball bearing is particularly suitable for carrying combined (axial and radial) loads. Sometimes, they alsocan carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted.So the bearing is normally adjust against a second bearing
2. Application:
Machine tool spindle, High frequency motor, Gas turbine, Centrifuge, Oil pump, Roots blower, Air compressor, Transmission, Printing machinery.
NSK Bearing 7315 Information |
||||||||||||||||||||||||||||
|
3. Features:
1) High quality and good service
2) Less friction and low noise
3) Competitive price
4) Quick delivery
5) Small order accepted
6) Excellent antitrust technology
7) Long life
4.Related NSK SAIFAN Bearing Catalogue
Bearing No. |
Dimensions (mm) | Weight (kg) | |||
d | D | B | |||
7212C Bearing | 7212AC | 60 | 110 | 22 | 0.80 |
7213C Bearing | 7213AC | 65 | 120 | 23 | 1.00 |
7214C Bearing | 7214AC | 70 | 125 | 24 | 1.10 |
7215C Bearing | 7215AC | 75 | 130 | 25 | 1.20 |
7216C Bearing | 7216AC | 80 | 140 | 26 | 1.45 |
7217C Bearing | 7217AC | 85 | 150 | 28 | 1.80 |
7218C Bearing | 7218AC | 90 | 160 | 30 | 2.25 |
7219C Bearing | 7219AC | 95 | 170 | 32 | 2.70 |
7220C Bearing | 7220AC | 100 | 180 | 34 | 3.25 |
7221C Bearing | 7221AC | 105 | 190 | 36 | 3.85 |
7222C Bearing | 7222AC | 110 | 200 | 38 | 4.55 |
7224C Bearing | 7224AC | 120 | 215 | 40 | 5.40 |
7304C Bearing | 7304AC | 20 | 52 | 15 | 0.15 |
7305C Bearing | 7305AC | 25 | 62 | 17 | 0.23 |
7306C Bearing | 7306AC | 30 | 72 | 19 | 0.35 |
7307C Bearing | 7307AC | 35 | 80 | 21 | 0.47 |
7308C Bearing | 7308AC | 40 | 90 | 23 | 0.66 |
7309C Bearing | 7309AC | 45 | 100 | 25 | 0.86 |
7310C Bearing | 7310AC | 50 | 110 | 27 | 1.08 |
7311C Bearing | 7311AC | 55 | 120 | 29 | 1.42 |
7312C Bearing | 7312AC | 60 | 130 | 31 | 1.71 |
7313C Bearing | 7313AC | 65 | 140 | 33 | 2.23 |
7314C Bearing | 7314AC | 70 | 150 | 35 | 2.67 |
7315C Bearing | 7315AC | 75 | 160 | 37 | 3.10 |
7316C Bearing | 7316AC | 80 | 170 | 39 | 3.60 |
7317C Bearing | 7317AC | 85 | 180 | 41 | 4.38 |
7318C Bearing | 7318AC | 90 | 190 | 43 | 5.17 |
7319C Bearing | 7319AC | 95 | 200 | 45 | 6.69 |
7320C Bearing | 7320AC | 100 | 215 | 47 | 7.60 |
