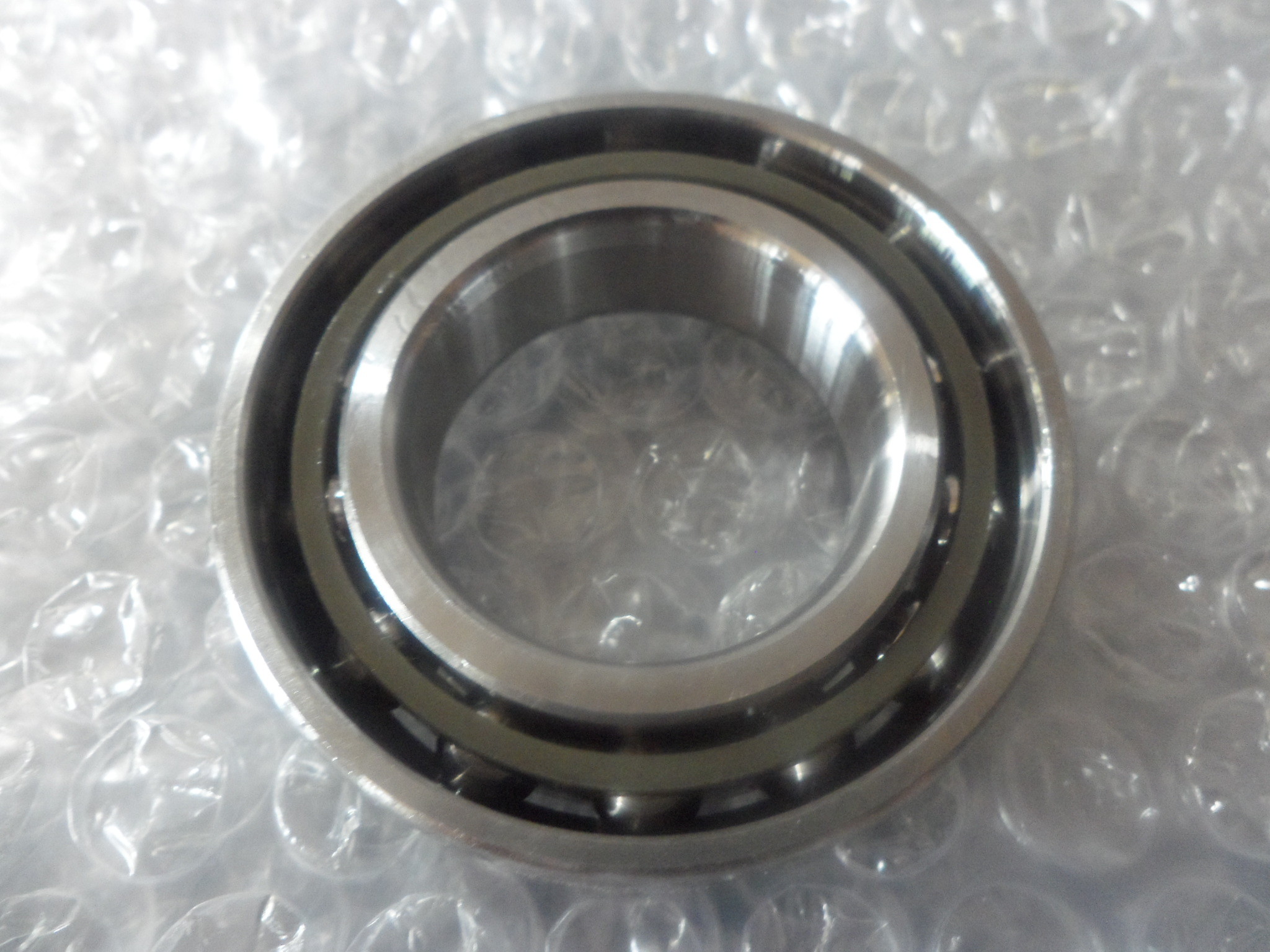

7212 Double Row Angular Contact Ball Bearing / Sealed Angular Contact Bearings

  • 7212 Double Row Angular Contact Ball Bearing / Sealed Angular Contact Bearings
Place of Origin: Japan
Brand Name: NSK
Certification: ISO9001:2008
Model Number: 7212
Minimum Order Quantity: 1pc
Price: USD0.1-1000/pc
Packaging Details: Industrial package: individual paper box + carton + pallet
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Product Details
Type: High Precision Angular Ball Bearing Material: Bearing Steel
Clearance: C0,C2,C3,C4 Precision Rating: P0 P6 P5 P4 P2
High Light:

double row angular contact bearing

,

sealed angular contact bearings
Leave a Message
Product Description

7212 Double Row Angular Contact Ball Bearing / Sealed Angular Contact Bearings



1. Angular Contact Ball Bearing:



Angular contact ball bearing can withstand radial load and axial load simultaneously, as well as the pure axle loads. They have higher limit speed. High precision and high speed bearings usually take 15 degrees contact Angle. The contact angle decide the capacity of axial load. Retainers are made of brass, synthetic resins or others subject to individual bearing features and application conditions.

Single-row angular contact ball bearings can accommodate axial load in one direction, if enduring radial load, it will raise additional axial force. And only limited axial displacement of the shaft or housing in one direction. The contact angle of angular contact ball bearings is 40, so you can afford a large axial load. Design of angular contact ball bearing is non-separable, shoulder height on both sides of the inners and outer rings are different. In order to increase the bearing load capacity, lower one side of the shoulder, so that the bearing can be mounted into more balls.

Pairs of angular contact ball bearings can accommodate radial loads as the principal combined radial and axial bi-directional load or under purely radial load. Tandem configuration can only take a single direction axial load, other configurations can be subjected to either direction of axial loads. This type of bearings are generally submitted by manufacturers combine matching users, pre-loading interference after installation, rings and balls of steel in the axial pre-load state, thus improving the supporting stiffness and running accuracy of bearing the whole group as a single.






NSK Bearing 7212 Information
Brand Name NSK  Angular Contact Ball Bearing 7212Bearing 7212 or according to your requirement
Item Name NSK  Angular Contact Ball Bearing 7212 NSK High Precision Bearing 7212
Bearing Sizes 60*110*22mm
Material Chrome steel, Gcr15
Weight 0.80kg
Application Bed spindle, high frequency motor, gas steam turbine, centrifugal separator, the small car front differential pinion shaft, booster pump, drilling platform
Payment

1)T/T 30% deposit, 70% before shipment.

2)WESTERN UNION available.

3)PayPal available.

4)Trade Assurance recommended.
Guarantee One year
Delivery Detail 2-10 days upon receipt of deposit
Package Individual package or according to buyers requirement
Bearing Advantage 1) Low friction, almost noiseless and high rolling speed
2) Easy to install
3) Simple structure ensures fast equipment
4) Optimised internal design
5) High load ratings



2. Features:



1) High quality and good service
2) Less friction and low noise
3) Competitive price
4) Quick delivery
5) Small order accepted
6) Excellent antitrust technology
7) Long life



3. Our Services:



1) Inquiries are typically replyed within 24 hours
2) OEM & ODM projects are highly welcomed.
3) Prompt delivery
4) Best after-sale service
5) Buyer Label Offered

4.Related NSK SAIFAN Bearing Catalogue



Bearing

No.

 Dimensions (mm) Weight (kg)
d D B
7212C Bearing 7212AC 60 110 22 0.80
7213C Bearing 7213AC 65 120 23 1.00
7214C Bearing 7214AC 70 125 24 1.10
7215C Bearing 7215AC 75 130 25 1.20
7216C Bearing 7216AC 80 140 26 1.45
7217C Bearing 7217AC 85 150 28 1.80
7218C Bearing 7218AC 90 160 30 2.25
7219C Bearing 7219AC 95 170 32 2.70
7220C Bearing 7220AC 100 180 34 3.25
7221C Bearing 7221AC 105 190 36 3.85
7222C Bearing 7222AC 110 200 38 4.55
7224C Bearing 7224AC 120 215 40 5.40
7304C Bearing 7304AC 20 52 15 0.15
7305C Bearing 7305AC 25 62 17 0.23
7306C Bearing 7306AC 30 72 19 0.35
7307C Bearing 7307AC 35 80 21 0.47
7308C Bearing 7308AC 40 90 23 0.66
7309C Bearing 7309AC 45 100 25 0.86
7310C Bearing 7310AC 50 110 27 1.08
7311C Bearing 7311AC 55 120 29 1.42
7312C Bearing 7312AC 60 130 31 1.71
7313C Bearing 7313AC 65 140 33 2.23
7314C Bearing 7314AC 70 150 35 2.67
7315C Bearing 7315AC 75 160 37 3.10
7316C Bearing 7316AC 80 170 39 3.60
7317C Bearing 7317AC 85 180 41 4.38
7318C Bearing 7318AC 90 190 43 5.17
7319C Bearing 7319AC 95 200 45 6.69
7320C Bearing 7320AC 100 215 47 7.60





7212 Double Row Angular Contact Ball Bearing / Sealed Angular Contact Bearings 0
