22210CCK/C3 22210CAM/C3 Sealed Spherical Roller Bearings Steel Cage And Brass Cage

Brand Name: SKF
Model Number: 22210CC/C3
Minimum Order Quantity: 1pc
Price: USD1.00 per pc
Packaging Details: normal package or according to your needs
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per month
Product Details
High Light:

metric spherical bearing

,

sealed spherical roller bearings

Leave a Message
Product Description

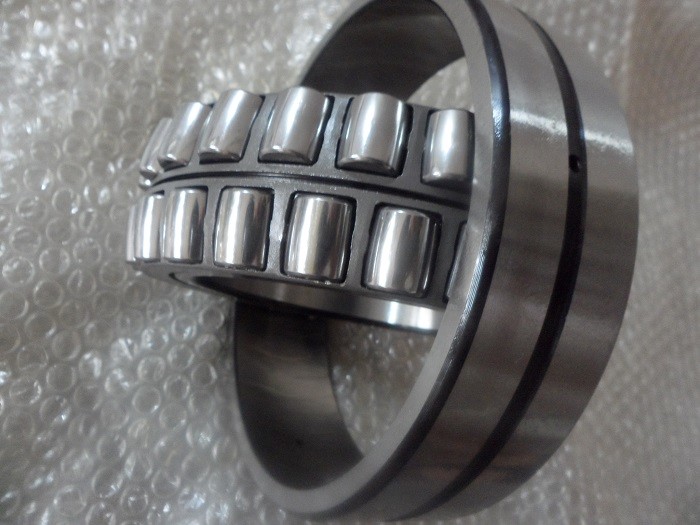

22210CCK/C3 22210CAM/C3 Sealed Spherical Roller Bearings Steel Cage And Brass Cage



Spherical roller bearing is a rolling-element bearing that permits rotation with low friction,and permits angular misalignment. Typically spherical roller bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. Most spherical roller bearing is designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load.



Feature:



  1. Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength.
    2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear.
    3. Offer advanced material options: Super TF and TL steel, depending on application requirements.
    4. Advanced Technology - patented Molded Oil lubrication system is also available.
    5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available
    6. Seal Technology - offers different sealing materials depending on the operating temperature of the bearing.
    7. Cage Materials – Available in steel, brass or polyamide depending on the requirements of the application.
    8. Manufacturing Technology – Advanced production system guarantees outstandingquality control.
    9. Life – up to 2 times the operating life of industry standard spherical roller bearing.
    10. Reduced maintenance costs – downsizing to smaller bearings while improving performance and lengthening equipment operating life.



Application Area:



Spherical roller bearing are used in a variety of applications. Examples include mining, petroleum production, power generation, power transmission, cement processing, aggregate crushing, and metal recycling. Some spherical roller bearings are used in briquetting machines, rubber mixing equipment, rolling mills, rotary dryers, or pulp and paper machinery. Others are used in construction equipment, crushers, electric motors, blowers and fans, gears and drives, plastics machinery, machine tools and traction motors and pumps.

22210CCK/C3 22210CAM/C3 Sealed Spherical Roller Bearings Steel Cage And Brass Cage 0

Bearing No. Boundary Dimensions (mm) Basic Load Rating (KN) Mass
d D B C Co kg
22206 22206 K 22206 W33 30 62 20 30.5 38.2 0.30
22207 22207 K 22207 W33 35 72 23 45.2 59.5 0.43
22208 22208 K 22208 W33 40 80 23 49.8 68.5 0.55
22209 22209 K 22209 W33 45 85 23 52.2 73.2 0.59
22210 22210 K 22210 W33 50 90 23 52.2 73.2 0.87
22211 22211 K 22211 W33 55 100 25 60.0 87.2 0.86
22212 22212 K 22212 W33 60 110 28 81.8 112.0 1.22
22213 22213 K 22213 W33 65 120 31 88.5 128.0 1.63
22214 22214 K 22214 W33 70 125 31 95.0 142.0 1.66
22215 22215 K 22215 W33 75 130 31 95.0 142.0 1.75
22216 22216 K 22216 W33 80 140 33 115.0 180.0 2.20
22217 22217 K 22217 W33 85 150 36 145.0 228.0 2.80
22218 22218 K 22218 W33 90 160 40 168.0 272.0 4.00
22219 22219 K 22219 W33 95 170 43 212.0 322.0 4.20
22220 22220 K 22220 W33 100 180 46 222.0 358.0 5.00
22222 22222 K 22222 W33 110 200 53 288.0 465.0 7.40
22224 22224 K 22224 W33 120 215 58 342.0 565.0 9.20
22226 22226 K 22226 W33 130 230 64 408.0 708.0 11.20
22228 22228 K 22228 W33 140 250 68 478.0 805.0 14.50
22230 22230 K 22230 W33 150 270 73 508.0 875.0 18.57
22232 22232 K 22232 W33 160 290 80 879.0 1220.0 22.80
22234 22234 K 22234 W33 170 310 86 983.0 1380.0 29.20
22236 22236 K 22236 W33 180 320 86 1040.0 1490.0 30.00
22238 22238 K 22238 W33 190 340 92 1150.0 1700.0 37.30
22240 22240 K 22240 W33 200 360 98 1290.0 1910.0 43.20
22244 22244 K 22244 W33 220 400 108 1560.0 2260.0 59.50
