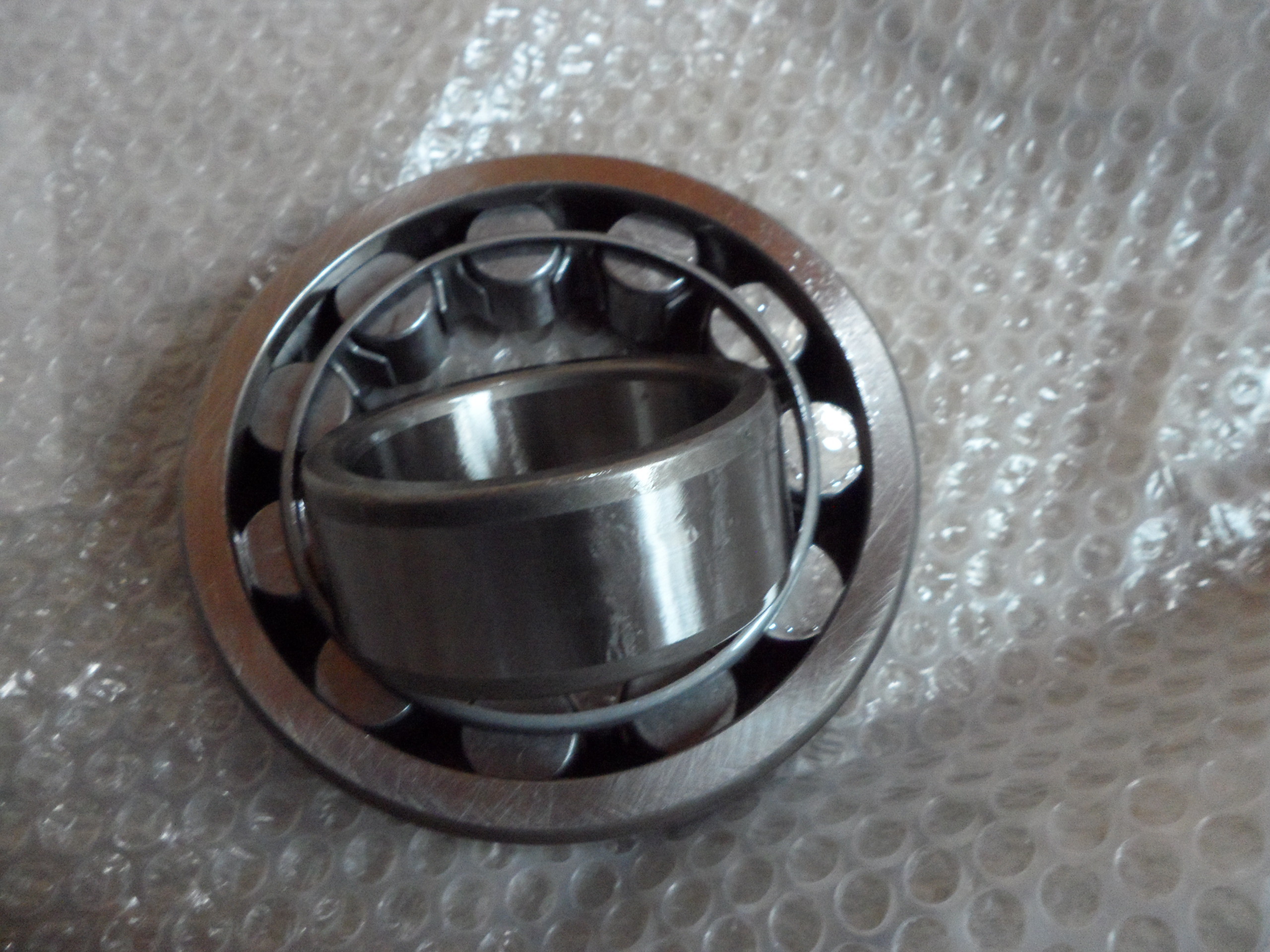

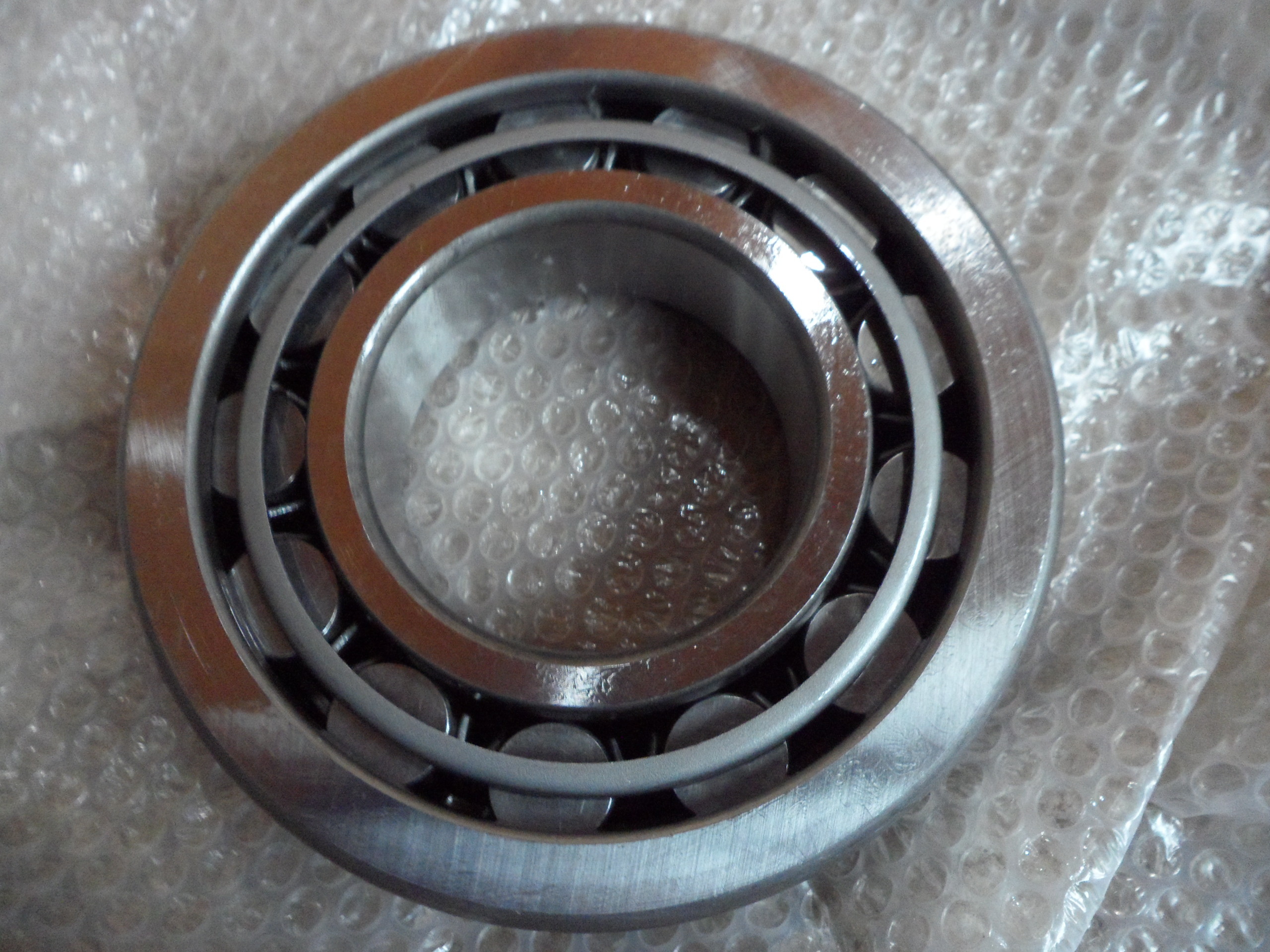

130mm Sealed Cylindrical Roller Bearings , Brass Bearing Roller Cylindrical
| Place of Origin: | Japan |
|---|---|
| Brand Name: | NSK |
| Model Number: | N2326E |
| Minimum Order Quantity: | 1pc |
| Price: | USD0.1-1000/pc |
| Packaging Details: | Usually made by plastic tube+anti-rust paper+box+carton |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 10000pcs/month |
Product Details
| Type: | Single Row Cylindrical Roller Bearing | Bore Size: | 130mm |
|---|---|---|---|
| Cage Material: | Brass | Precision Rating: | P5,P6 |
| High Light: | sealed cylindrical roller bearings,axial cylindrical roller bearings |
||
Product Description
Stainless Steel Spindle Cylindrical Roller Bearing Single Row N2326 E , 130mm Bore
Cylindrical roller bearing is a cylindrical roller and raceway for connecting angle bearings, bearing capacity is large, mainly bear radial load. The friction between the rolling body and the ring edge is small, which is suitable for high-speed rotation. If the rings are broken, they can be divided into single row bearings, NU, NJ, NUP, N, NF and NNU NN double row bearings. The bearing is a detachable structure in the inner ring and outer ring.
Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single and double row full complement bearings (without a cage) and split bearings complete the standard assortment provided here.
Application:
These bearings are the most common type and are used in a wide variety of applications. Such as Steel Industry , Mining & Construction , Papermaking Machinery , Wind Turbines , Machine Tools , Gearboxes , Electric Motors , Pumps & Compressors , Injection Molding , Motorcycles , Railways, etc.
Features of Cylindrical Roller Bearing
1. High radial load capacity,is suitable for heavy load and impact load.
2. Small friction, suitable for high speed,the limiting Speed is close to Deep Groove Ball Bearings
3. N,NU series can adapt to high temperature and allow error during installation.
4. inner ring and outer ring are separable,easy to install and take down
Single row: NU, NJ, NUP, N, NCF and NJG designs
Double row: NNU, NN and NNF designs
Quick description:
| Bearing Model | N2326E |
| Type | Cylindrical Roller Bearing |
| Bore Size (mm) | 130 |
| Outside Diameter (mm) | 280 |
| Width (mm) | 93 |
| Mass (kg) | 26.40 |
| Material | Chrome Steel, Carbon steel, Stainless steel |
| Cage Material | Steel |
| Number of Row | Single Row |
| Precision Rating | P5. P6 |
| Basic Dynamic Load Rating (Cr) | 340 kN |
| Basic Static Load Rating (Cor) | 335 kN |
| Limiting Speed | 4800 r/min |
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| d | D | B | C | Co | kg | |||
| N308EM | NU308EM | NJ308EM | 40 | 90 | 23 | 76.8 | 77.8 | 0.65 |
| N309EM | NU309EM | NJ309EM | 45 | 100 | 25 | 93.0 | 98.0 | 0.95 |
| N310EM | NU310EM | NJ310EM | 50 | 110 | 27 | 105.0 | 112.0 | 1.20 |
| N311EM | NU311EM | NJ311EM | 55 | 120 | 29 | 128.0 | 138.0 | 1.61 |
| N312EM | NU312EM | NJ312EM | 60 | 130 | 31 | 142.0 | 155.0 | 1.94 |
| N313EM | NU313EM | NJ313EM | 65 | 140 | 33 | 170.0 | 188.0 | 2.42 |
| N314EM | NU314EM | NJ314EM | 70 | 150 | 35 | 195.0 | 220.0 | 2.90 |
| N315EM | NU315EM | NJ315EM | 75 | 160 | 37 | 228.0 | 260.0 | 3.59 |
| N316EM | NU316EM | NJ316EM | 80 | 170 | 39 | 245.0 | 270.0 | 3.90 |
| N317EM | NU317EM | NJ317EM | 85 | 180 | 41 | 265.0 | 280.0 | 5.20 |
| N318EM | NU318EM | NJ318EM | 90 | 190 | 43 | 290.0 | 320.0 | 6.17 |
| N319EM | NU319EM | NJ319EM | 95 | 200 | 45 | 320.0 | 350.0 | 6.92 |
| N320EM | NU320EM | NJ320EM | 100 | 215 | 47 | 355.0 | 380.0 | 8.24 |
| N322EM | NU322EM | NJ322EM | 110 | 240 | 50 | 415.0 | 470.0 | 11.20 |
| N324EM | NU324EM | NJ324EM | 120 | 260 | 55 | 440.0 | 552.0 | 14.10 |
| N326EM | NU326EM | NJ326EM | 130 | 280 | 58 | 615.0 | 735.0 | 19.30 |
| N328EM | NU328EM | NJ328EM | 140 | 300 | 62 | 665.0 | 795.0 | 23.70 |
| N330EM | NU330EM | NJ330EM | 150 | 320 | 65 | 715.0 | 855.0 | 26.80 |
| N332EM | NU332EM | NJ332EM | 160 | 340 | 68 | 860.0 | 1050.0 | 33.00 |
| N334EM | NU334EM | NJ334EM | 170 | 360 | 72 | 795.0 | 1010.0 | 37.50 |
| N336EM | NU336EM | NJ336EM | 180 | 380 | 75 | 905.0 | 1150.0 | 43.50 |
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| d | D | B | C | Co | kg | |||
| N408M | NU408M | NJ408M | 40 | 110 | 27 | 90.5 | 89.8 | 1.15 |
| N409M | NU409M | NJ409M | 45 | 120 | 29 | 102.0 | 100.0 | 1.77 |
| N410M | NU410M | NJ410M | 50 | 130 | 31 | 120.0 | 120.0 | 2.26 |
| N411M | NU411M | NJ411M | 55 | 140 | 33 | 145.0 | 141.0 | 2.95 |
| N412M | NU412M | NJ412M | 60 | 150 | 35 | 148.0 | 144.0 | 3.20 |
| N413M | NU413M | NJ413M | 65 | 160 | 37 | 185.0 | 191.0 | 3.92 |
| N414M | NU414M | NJ414M | 70 | 180 | 42 | 205.0 | 210.0 | 6.40 |
| N415M | NU415M | NJ415M | 75 | 190 | 45 | 254.0 | 265.0 | 7.03 |
| N416M | NU416M | NJ416M | 80 | 200 | 48 | 275.0 | 284.0 | 8.25 |
| N417M | NU417M | NJ417M | 85 | 210 | 52 | 312.0 | 325.0 | 9.50 |
| N418M | NU418M | NJ418M | 90 | 225 | 54 | 350.0 | 360.0 | 11.00 |
| N419M | NU419M | NJ419M | 95 | 240 | 55 | 400.0 | 445.0 | 13.60 |
| N420M | NU420M | NJ420M | 100 | 250 | 58 | 450.0 | 500.0 | 15.50 |
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| d | D | B | C | Co | kg | |||
| N2308EM | NU2308EM | NJ2308EM | 40 | 90 | 33 | 82.2 | 88 | 1.10 |
| N2309EM | NU2309EM | NJ2309EM | 45 | 100 | 36 | 106.0 | 113 | 1.51 |
| N2310EM | NU2310EM | NJ2310EM | 50 | 110 | 40 | 128.0 | 142 | 2.01 |
| N2311EM | NU2311EM | NJ2311EM | 55 | 120 | 43 | 148.0 | 162 | 2.80 |
| N2312EM | NU2312EM | NJ2312EM | 60 | 130 | 46 | 168.0 | 188 | 3.38 |
| N2313EM | NU2313EM | NJ2313EM | 65 | 140 | 48 | 190.0 | 212 | 3.75 |
| N2314EM | NU2314EM | NJ2314EM | 70 | 150 | 51 | 224.0 | 262 | 4.50 |
| N2315EM | NU2315EM | NJ2315EM | 75 | 160 | 55 | 275.0 | 327 | 6.33 |
| N2316EM | NU2316EM | NJ2316EM | 80 | 170 | 58 | 275.0 | 332 | 6.60 |
| N2317EM | NU2317EM | NJ2317EM | 85 | 180 | 60 | 315.0 | 382 | 8.60 |
| N2318EM | NU2318EM | NJ2318EM | 90 | 190 | 64 | 329.0 | 395 | 9.20 |
| N2319EM | NU2319EM | NJ2319EM | 95 | 200 | 67 | 394.0 | 496 | 10.80 |
| N2320EM | NU2320EM | NJ2320EM | 100 | 215 | 73 | 464.0 | 548 | 15.50 |
| N2322EM | NU2322EM | NJ2322EM | 110 | 240 | 80 | 604.0 | 789 | 19.50 |
| N2324EM | NU2324EM | NJ2324EM | 120 | 260 | 86 | 710.0 | 920 | 21.10 |
| N2326EM | NU2326EM | NJ2326EM | 130 | 280 | 93 | 840.0 | 1130 | 26.40 |
| N2328EM | NU2328EM | NJ2328EM | 140 | 300 | 102 | 1020.0 | 1380 | 39.50 |
| N2330EM | NU2330EM | NJ2330EM | 150 | 320 | 108 | 1160.0 | 1600 | 47.50 |
