16017-2Z Deep Groove Bearing / Nylon Imperial Deep Groove Ball Bearings
|Material:||Imperial Deep Groove Ball Bearings||Quality Standard:||ISO9001:2008|
u groove ball bearing,
double row deep groove ball bearings

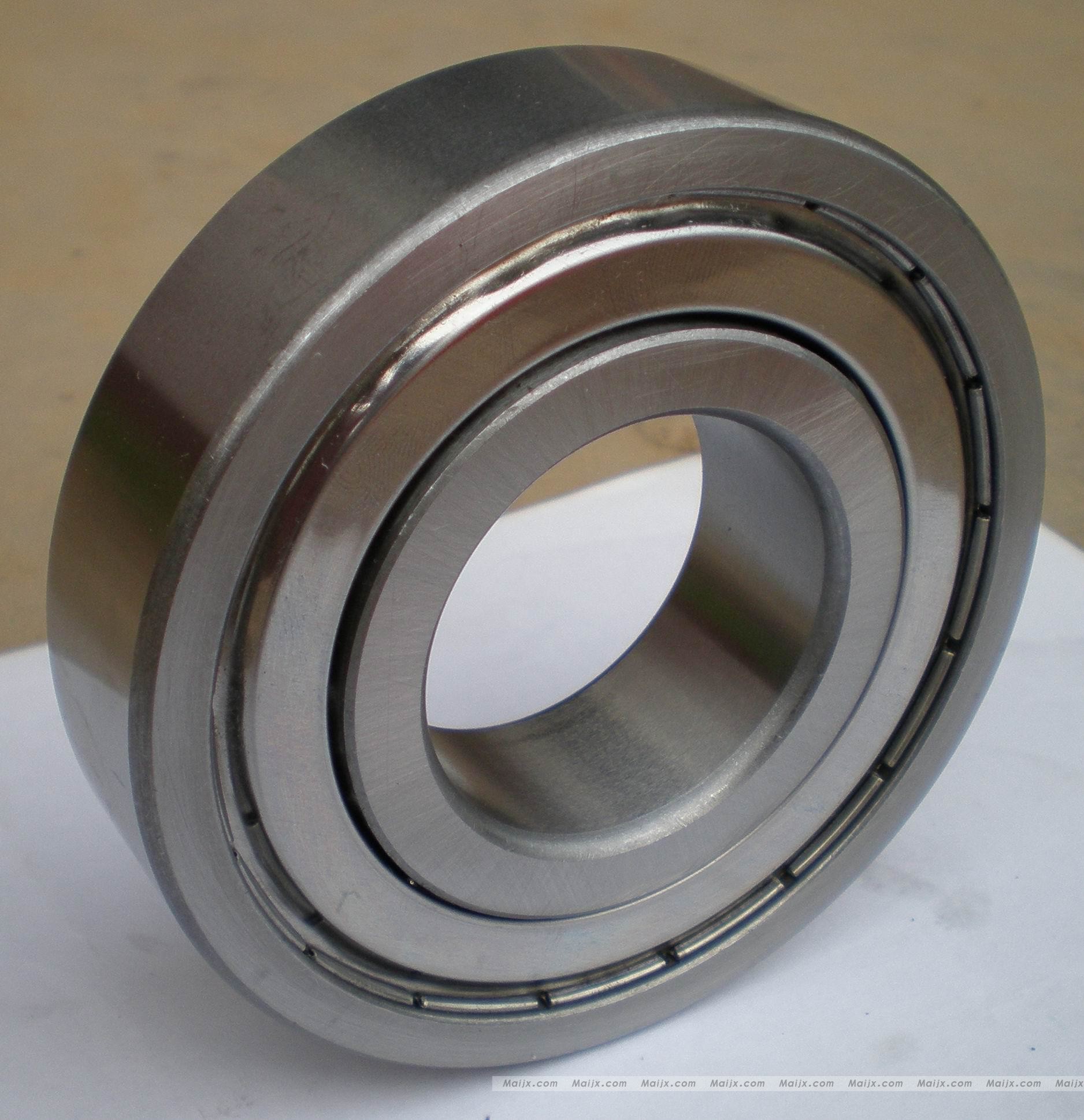

Deep Groove sealed Ball Bearing 16017-2Z
Deep groove ball bearings are one kind of radial bearings widely used. They are simple in structure non-separable cheap in its price. In addition they require little maintenance in service as well as are capable to be operated at high speeds.
Both the inner and outer ring of single roe deep groove ball bearings have a deep groove raceway in addition the goods sealing quality between raceway and ball can make bearings carry radial loads as well as certain axial loads. After the radial clearance is increased properly axial load carrying capacity will be improved accordingly. Thats the reason why it can replace high speed angular contact ball bearings in some cases.
Deep Groove Ball Bearings use is very widespread. In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are pre-lubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common. For big deep groove ball bearings, machined brass cages are used. Machined cages are also used for high speed applications.
They can be classified as: open, shielded, or sealed. “WJY” bearing can supply deep groove ball bearing with metric size, inch size, and with flange, ceramic, stainless steel deep groove ball bearings, double-row deep groove ball bearings, they are widely used in universal motor, household appliances, instrument, internal-combustion engine, Construction Machinery, Railway Vehicle, Loading and Unloading Machinery, Agricultural Machinery etc
These bearings are the most common type and are used in a wide variety of applications. Such as Steel Industry , Mining & Construction , Papermaking Machinery , Wind Turbines , Machine Tools , Gearboxes , Electric Motors , Pumps & Compressors , Injection Molding , Motorcycles , Railways, etc.
|Type||Deep Groove Bearing|
|Bore Size (mm)||85|
|Outside Diameter (mm)||130|
|Material||Chrome Steel, Carbon steel, Stainless steel|
|Number of Row||Single Row|
|Precision Rating||P5. P6|
|Basic Dynamic Load Rating (Cr)||23.4 kN|
|Basic Static Load Rating (Cor)||11.6 kN|
|Limiting Speed||7500 r/min|
Packing & Delivery:
Single box--Paper carton--Wooden case
3-5 days upon your confirmation of the order
1. Fast delivery
2. Competitive price
3. High performance
4. Perfect packing and aftermarket service
5. Flexiable paymnet terms
6. Famous brand all over the worl
|Bearing No.||Inner diameter||Outer diameter||Width||Rated load||Steel ball parameters||Limit speed(RPM)||Weight|
