150X225X35mm N1030K Cylindrical Roller Bearing Lower Noise For Motors / Dynamos
| Place of Origin | CHINA |
|---|---|
| Brand Name | DWR |
| Model Number | N1030K |
| Minimum Order Quantity | 100 |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | 100-2000pcs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | GCr15 Nylon, Brass, Steel, Etc All Kinds Of Cage | Structure | Cylindrical |
|---|---|---|---|
| Application | Motors, Dynamos, | Product Name | High Precision Roller Bearing |
| Feature | High Precision ; Lower Noise, | Weight | 9.3kg, 1.39KG |
| Highlight | cylindrical roller thrust bearing,axial cylindrical roller bearings |
||
Product Description
Low structural characteristics: high purity on inner and outer bearing steel or double vacuum high temperature bearing steel, with special heat treatment, cold treatment technology and material modification, make this series of bearing fatigue life of great increase in single row and double row roller bearings have two types of bore cylindrical and conical, on the main shaft in order to easy to adjust the radial internal clearance after installation, the spindle rotation accuracy and radial stiffness, generally USES cone bearing.
Low cage: there are two: outer guide of PEEK resin keep frame and copper alloy guide roller cage; Can choose according to different purposes. High speed single row cylindrical roller bearings use PEEK cage; Using the limit temperature 240 DHS С. Double row short cylindrical roller bearing adopts copper alloy cage guide roller; Using the limit temperature 300 DHS С

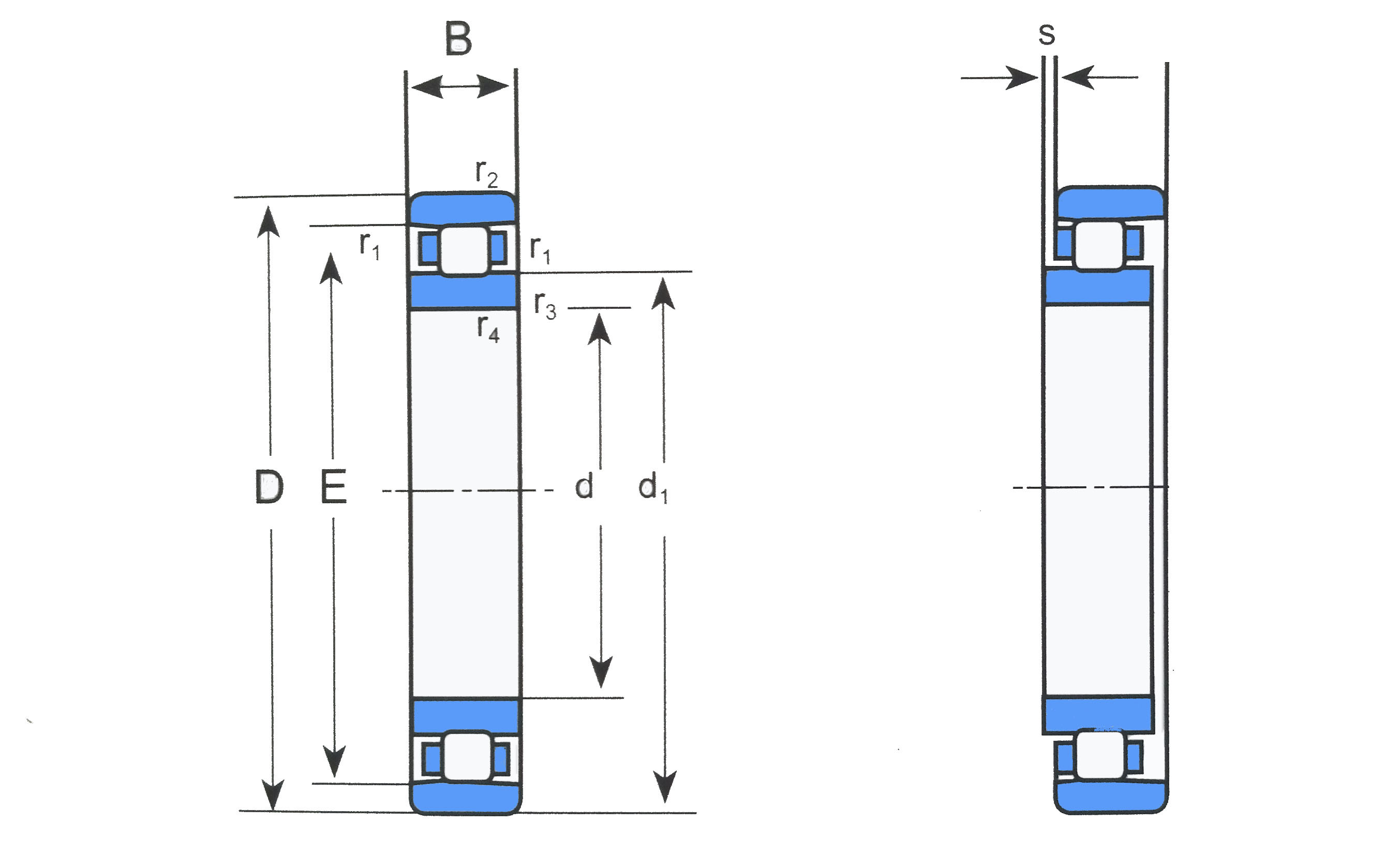

| Cylindrical roller bearings, single row cylindrical roller bearings | ||||||
| model | Overall dimensions | The rated load | Limit speed | Maintains a material | ||
| d | D | B | Cr Cor | Grease Oil | ||
| N1008K | 40 | 68 | 15 | 25.1 28 | 15000, 17000, | nylon |
| N1009K | 45 | 75 | 16 | 29.2 32.5 | 13000, 15000, | nylon |
| N1010K | 50 | 80 | 16 | 30.8 36.5 | 12000, 14000, | nylon |
| N1011K | 55 | 90 | 18 | 40.2 48 | 11000, 13000, | nylon |
| N1012K | 60 | 95 | 18 | 42.9 53 | 1000, 12000, | nylon |
| N1013K | 65 | 100 | 18 | 44.6 58.5 | 9500, 11000, | nylon |
| N1014K | 70 | 110 | 20 | 57.2 75 | 9000, 10000, | nylon |
| N1015K | 75 | 115 | 20 | 56.1 75 | 8500, 9500, | nylon |
| N1016K | 80 | 125 | 22 | 69.3 93 | 8000, 9000, | nylon |
| N1017K | 85 | 130 | 22 | 73.7 102 | 7500, 8500, | nylon |
| N1018K | 90 | 140 | 24 | 79.2 108 | 7000, 8000, | nylon |
| N1019K | 95 | 145 | 24 | 84.2 116 | 6700, 7500, | nylon |
| N1020K | 100 | 150 | 24 | 88, 125, | 6700, 7500, | nylon |
| N1021K | 105 | 160 | 26 | 110, 153, | 6300, 7000, | nylon |
| N1022K | 110 | 170 | 28 | 128, 180, | 5600, 6300, | nylon |
| N1024K | 120 | 180 | 28 | 134, 196, | 5300, 6000, | nylon |
